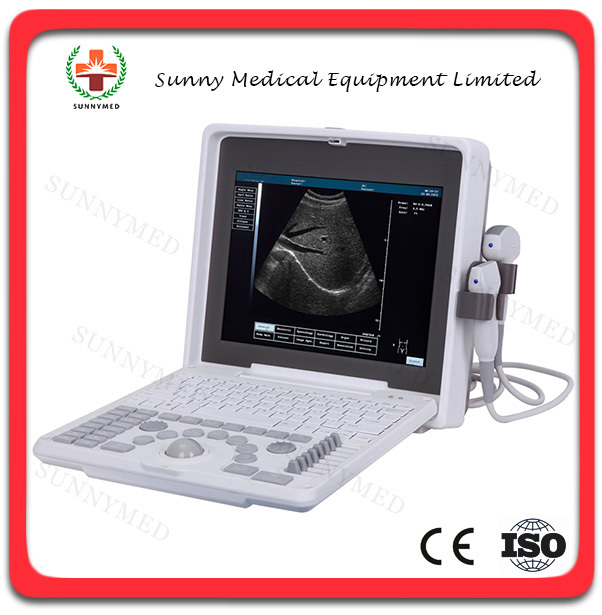

Description

General Descriptions:
Image mode: B,B+B,4B,B+M
Scanning
Depth: ≥200mm (depend on the probe types)
Resolution: Lateral resolution≤2 mm Longitudinal resolution≤1mm
Blind area: ≤3mm
Gray scale: 256
Multi-purpose:
obstetrics, abdomen, urology, gynecology, orthopaedics,
small parts,
pediatrics applications etc.
Beam-forming:
Full digital beam-forming technology(DBF)
Dynamic Frequency Scan(DFS)

Real-time Dynamic Aperture(RDA)
Dynamic Receiving Apodization(DRA)
Dynamic Receiving Focusing(DRF)

Image processing:
Scanning angle selection
Gray-scale suppression
Gray mapping
-correction
Histogram
Edge Enhancement
Frame correlation
Left-right reverse
Up-down reverse
ONE-touch optimization

Features  :

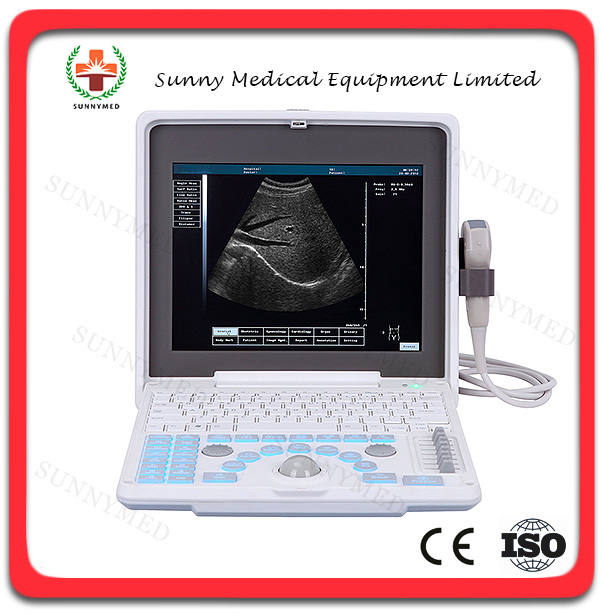

Monitor 12 inch LCD
TGC 8-TGC assuring accurate image control
Cine loop: 256-frame cine loop memory,playback speed selectable
Memory disk 4G
E-Focus Number of focus,Focus distance,Focus position can be adjusted
Local zoom 2 times both in real-time and frozen
Body marks ≥100
Comment Date,Time,Name,Gender, Age,Hospital,Doctor,Annotation

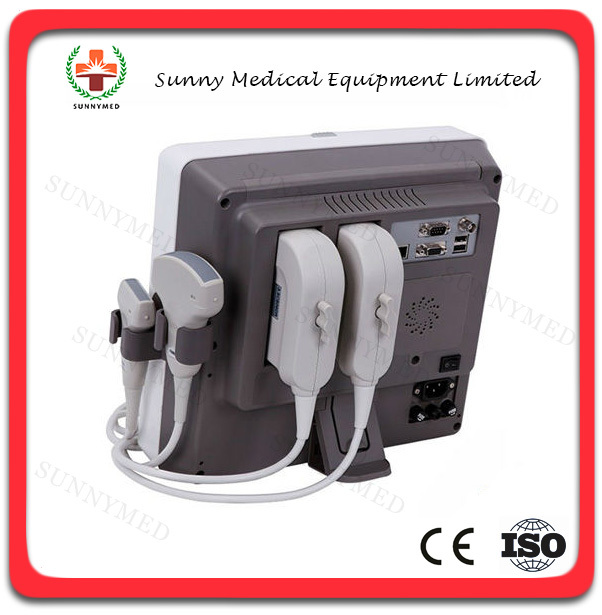

Probe connector 2
Probes electable convex,linear,micro-convex,Cavity
Measurement & Calculation:
B-mode
distance, circumference, area, volume, angle,
histogram, profile,
line narrowness ratio,surface narrowness ratio
M-mode distance time, velocity heart rate,Slope & speed
OB
measurement
GS, CRL, BPD, HC, AC, FL, HUMERUS, TIBIA,
ULNA, OFD,

APAD, TAD, FTA, THD
Software
package
abdomen, OB/GYN , Cardiology, Organ, Urology,
small parts

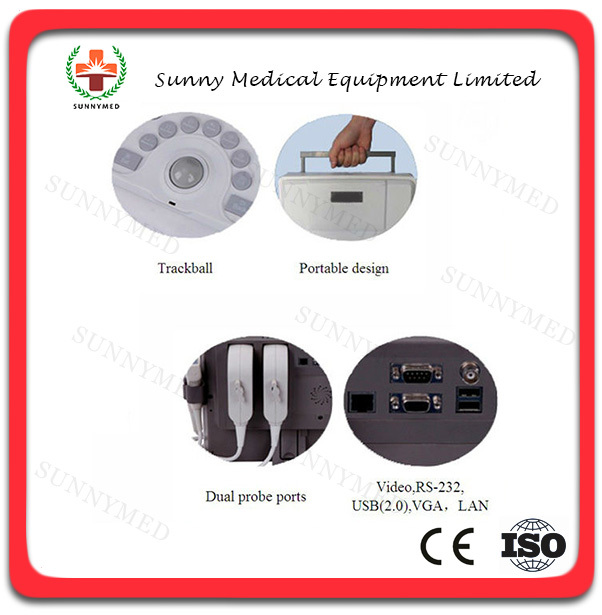

Peripheral Ports:
Video,RS-232,USB(2.0),VGA,LAN

Standard configurations:
3.5MHz Convex probe(R60)
Optional configuration:
7.5MHz Linear probe
5.0MHz Micro-Convex probe
6.5MHz Transvaginal probe
7.5MHz Endorectal probe
Video Printer
Biopsy bracket
Trolley
