Product Features:
-Small portable, easy to carry;
-Concise function, simple to operation;

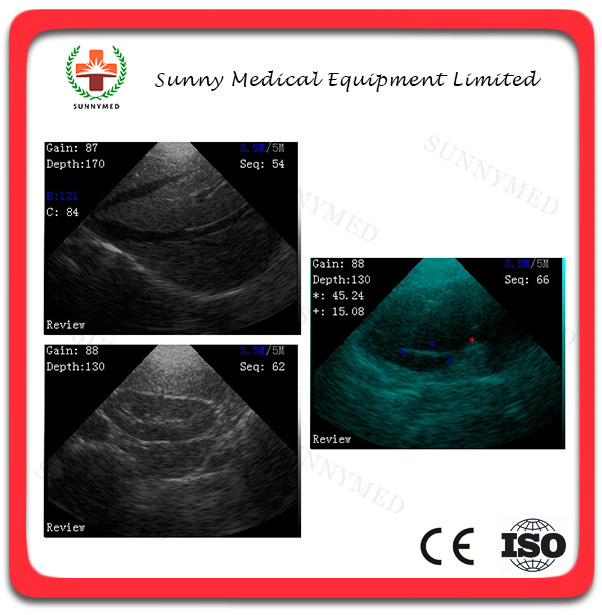

-Clear image, can be used to judgment pregnant, measuring fat;
-With probe frequency conversion function, adapted to different inspection demand;
-Battery can change easy, and for power dissipation is small so battery working time long;
-Large capacity SD card for store image (optional);
-With pseudo color display function.
Technical Specifications:
| Scanning system | sector sweep |
| Probe frequency | 3.5MHz/5MHz probe and can variable frequency |
| Scanning depth | ≥180mm, 70mm/110mm/130mm/150mm/192mm adjustable |
| Screen | 3.5 inches |
| Display mode | B |
| Image gray scale | 256 |
| Pseudo color | 8 type |
| Image store | 512 frame(by SD card) |
| Input power | dc 5V (by external battery input) |
| Power consumption | 7W (probe run) /2.5W (probe stop) |
| Battery work time | 10 hours |
| Size | 204mm*100mm*22mm |
| Weight | host 300g, probe 150g |
