Description

Applicable range:

The device is applicable for hospitals and clinics for examining liver, GB, spleen, kidney, pancreas, heart, bladder, uterus, etc.

Features:

·The image can be displayed in real time, frozen, amplified, black- white reversed, up and down conversed and shift depth in real time.

· Video output is standard PAL and VGA; it is easily accessed to the equipment, such as the large screen monitor, videocassette recorder, video image printer, etc.

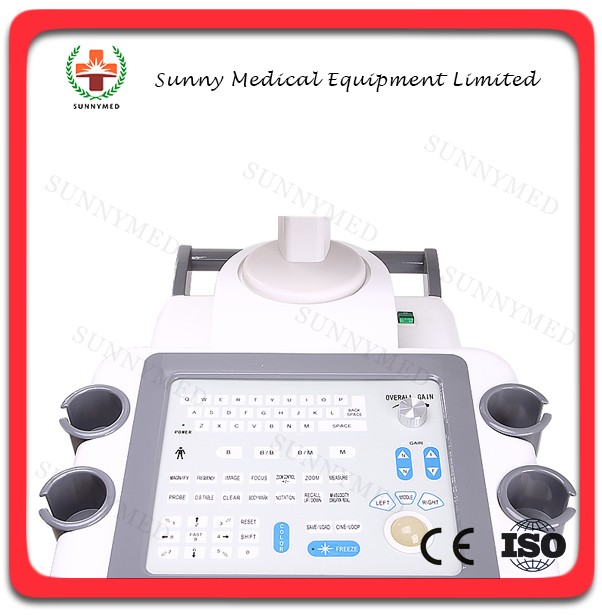

·Soft keyboard and track ball to make operation faster, convenient and flexible.

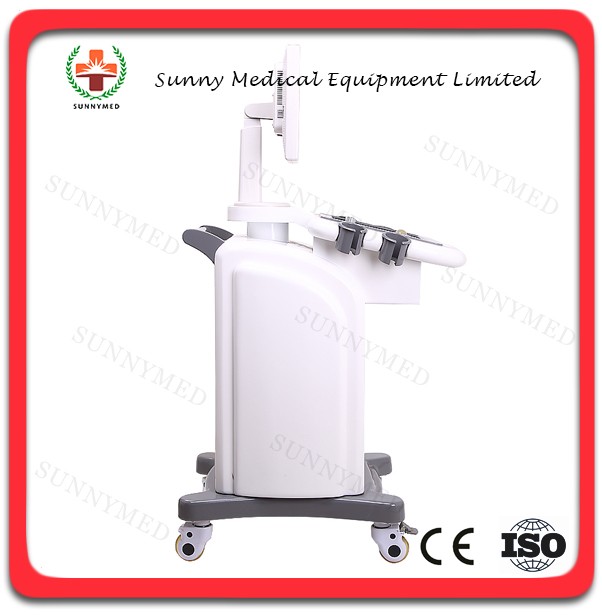

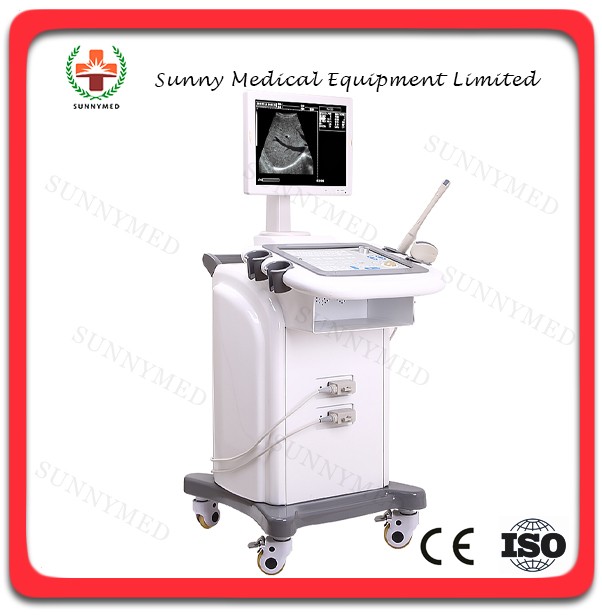

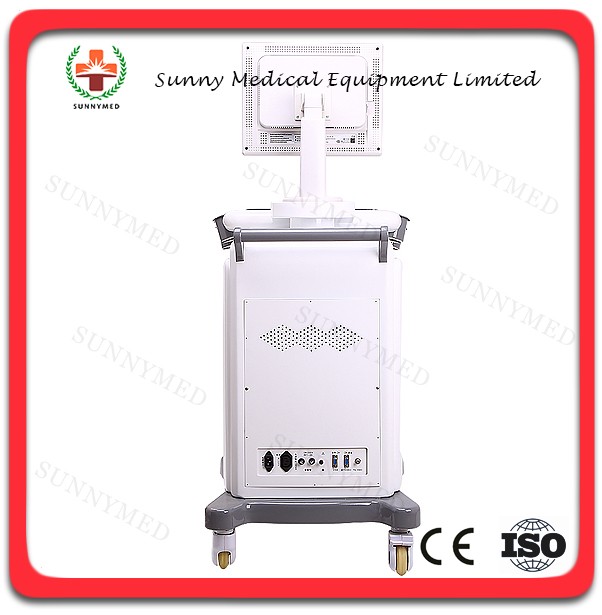

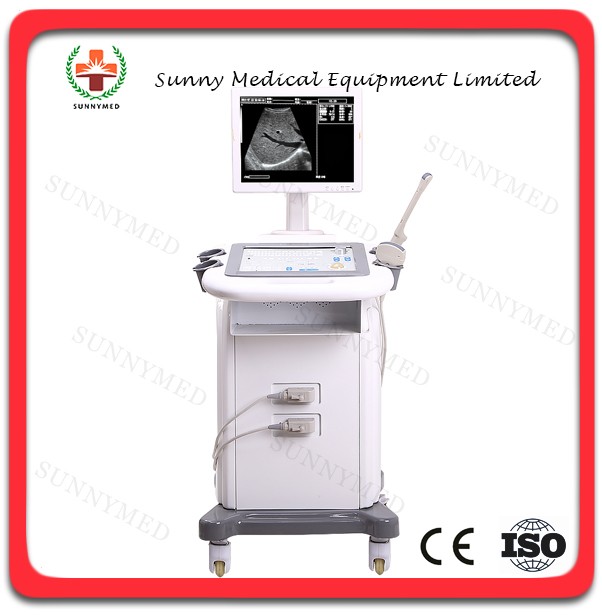

·The device is trolley structured with plastic cover. Switch power is used without working frequency transformer.

FPGA and SMT in the device make the device high integrated, small volume and light weight.

·The device passed clinical verification of safety and diagnosis validity in its manufacturing country.

·Chinese-English conversation.

Specifications:

Display Depth (mm): ≥220

Resolution(mm):Lateral, ≤3(depth≤80), ≤4(80<depth≤130); Axial, ≤2(depth≤80), ≤3(80<depth≤130)

Dead Zone (mm): ≤5

Geometry precision (%): Horizontal: ≤15; Vertical: ≤10

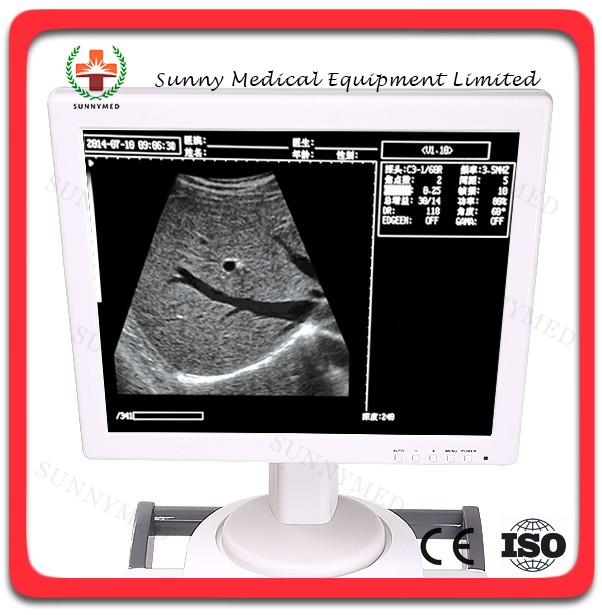

Monitor screen: 14 inch

Display mode: B, B+B, B+M, M

Image gray scales: 256 scales

Electronic focusing: 4 focuses combination randomly

Magnification: x1.0, x1.2, x1.5, x2.0

Cine-loop: 186 or 236 frames

Image storage: 20 frames

Pseudo-color unit: inside

Image reverse: left/right, black/white, up/down

Local Zoom: 2 times

Depth shift: B, B+B modes real time shift

Powder supply: 100V-130V/220V-240V, 50/60Hz

 Standard Configuration:

.Scanner Body: 1pc

·3.5Mhz Convex Probe: 1pc

·Charger with a set of wires: 1set

·Bottle of USG gel: 1pc

·User Manual: 1pc

Optional:

·5.0MHz Micro-convex Probe

·6.5MHz Trans-vaginal Probe

·7.5MHz Linear Probe

.Video Printer
