Description

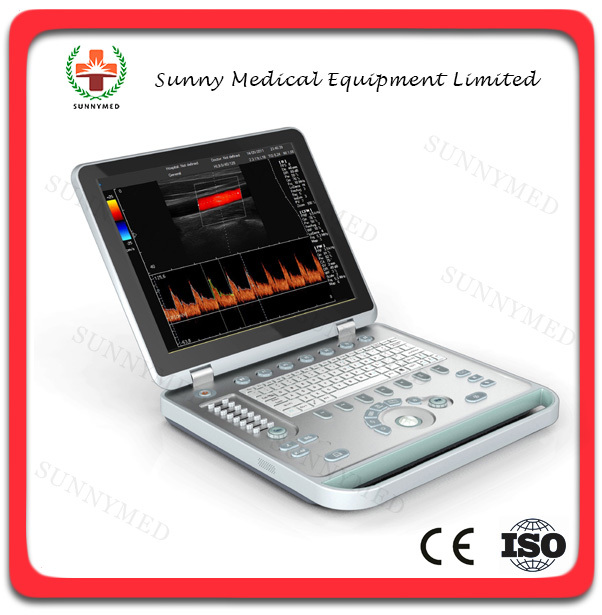

SY-A024 Color Doppler USG  is a very high cost-effective  device, for it with good image, powerful functions
and also pretty appearance, but price is inexpensive.
It with a large volume hardisk so can store many image and video, and can make a detail report directly
not need connect to computer and make on computer, and can work with general ink or laser printer
so the printer cost is low.
We believe you will like it, and it can bring benifits to your work.

Feature of USG  :

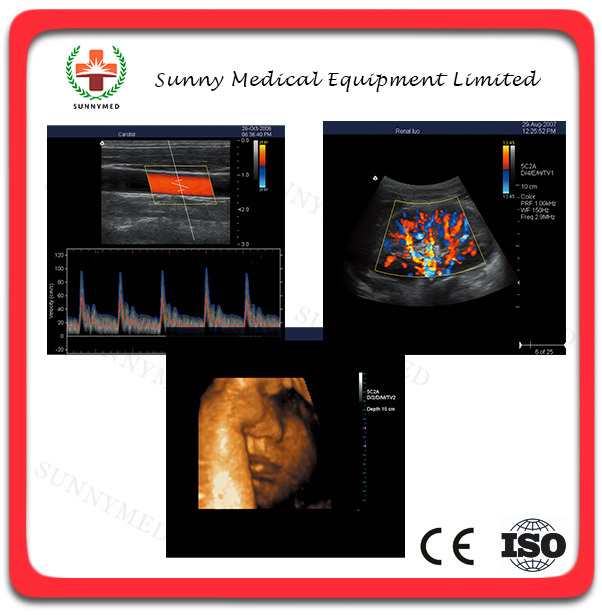

·CFM, PDI, DPDI, PWD, Duplex, Triplex, HPRF, THI
·High definition image

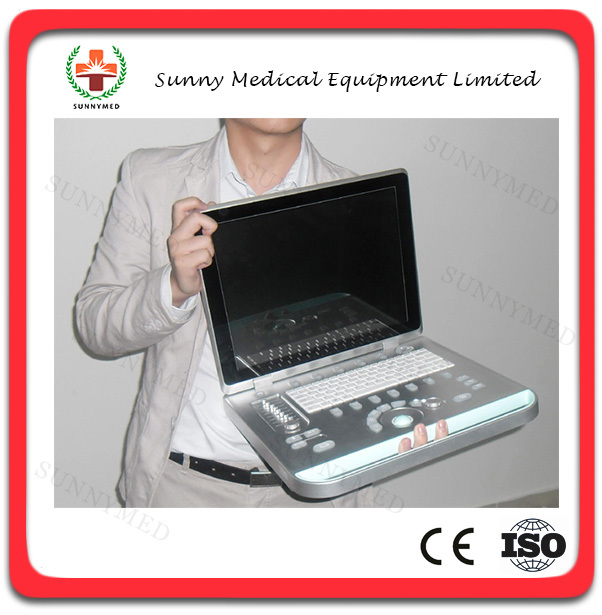

·Very thin, light and pretty
·15inch LED Screen
·Built-in Battery
·3D imaging(option)
·Abundant functions, Multilingual
·Hardisk, USB storage

Specifications of USG  :
1. Imaging Modes:
B, B|B, 4B, B|M, M
Color Doppler (CFM)
Power Doppler (PDI)
Directional Power Doppler (DPDI)
Pulsed Wave Doppler (PWD)
B+PWD (Duplex)
B+CFM/PDI/DPDI+PWD (Triplex)
High Pulse Repetition Frequency (HPRF)
Tissue Harmonic Imaging (THI)

2. Scanning Method:

electronic linear, electronic convex, electronic micro-convex, scanning depth: 2-24cm

3. Color Doppler:
PRF variable: 0.5-9 kHz
wall filter settings: 3 steps (5%, %10%, 15% PRF)
angle steering for linear transducers: ±10°
real-time spatial filter: 4 values
CFM palette>10 maps
PDI palette>10 maps
B/Color priority control
color threshold control
CFM baseline control
Doppler frequency selection
color frame averaging
Transparent Color Mapping (TCM)

4. Pulsed Wave Doppler:
PRF variable: 1-10 kHz
wall filter settings: 16 steps (2.5%-20% PRF)
angle steering for linear transducers: ±10°
real-time trace line with automatic calculation of spectrum parameters
stereo sound: volume control
PWD palette>10 maps
Doppler frequency selection

5.Processing:
High Line Density scan mode for better resolution
8 sliders TGC Control
dynamic range>120 dB
overall gain control
M – mode sweep speed control
acoustic power control
variable frame averaging
brightness, contrast
advanced gamma control
scan direction, rotation, up-down controls
negative / positive control
echo enhancement control
noise rejection function
speckle reduction

6. Image and video: AVI, JPG, BMP, PNG, TIF, DCM (DICOM)

7. General Measurements and Calculations: Distance, Length, Area, Circumference, Volume, Angle,

Stenosis %, A/B Ratio, Velocity, Pressure Gradient (PG), Acceleration, Resistivity Index (RI),

Heart Rate, Velocity Time Integral (VTI), etc.

8. Measurements and Calculations Software Packages: Obstetrics, Gynecology, Abdominal,

Urology, Endocrinology, Vascular, Cardiology, etc.

9. Expansion interfaces:
VGA, TV Interface
USB2.0 Interface
RJ-45 Network interface
Support DeskJet printer, LaserJet printer, video printer

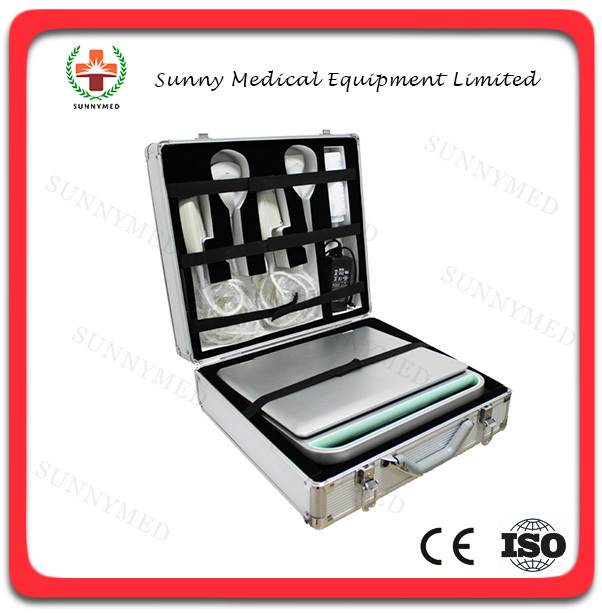

Standard Configuration:
Host 1 unit; Convex probe 1 pcs; Lienar or Trans-vaginal probe 1 pcs

Packing size:53*53*25cm  15kg
