Description

Standard configuration includes :

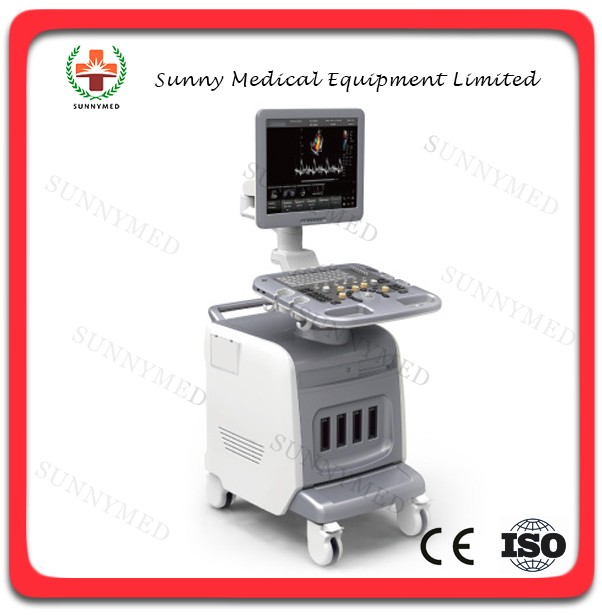

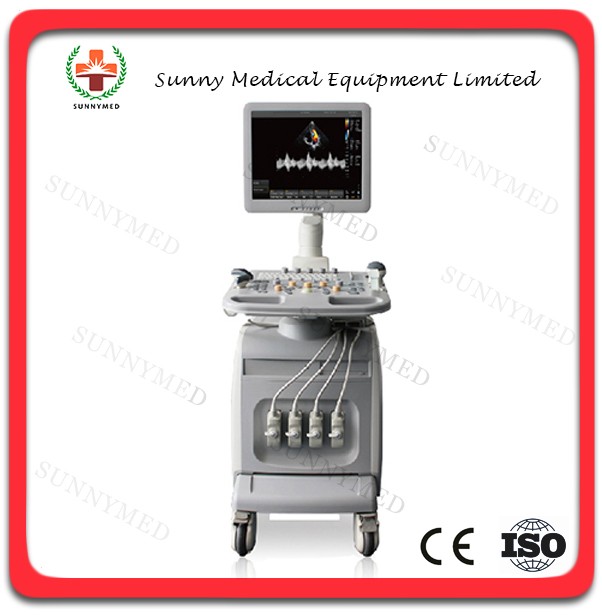

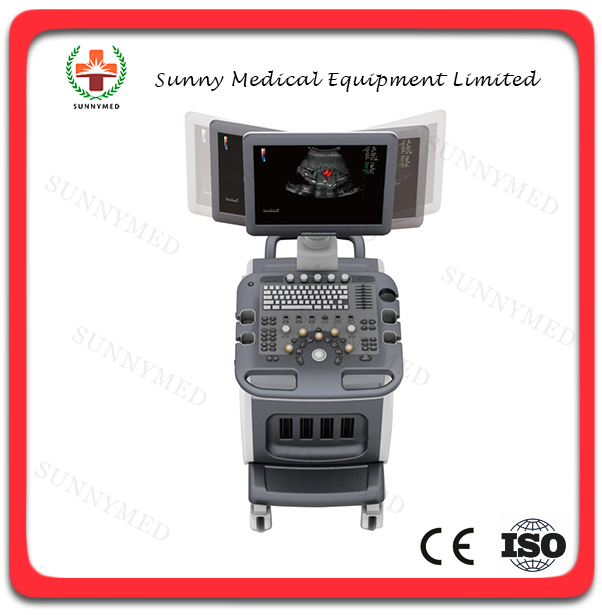

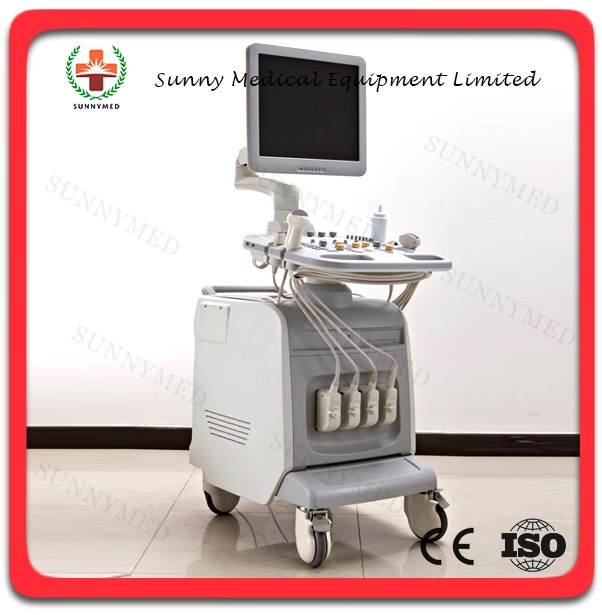

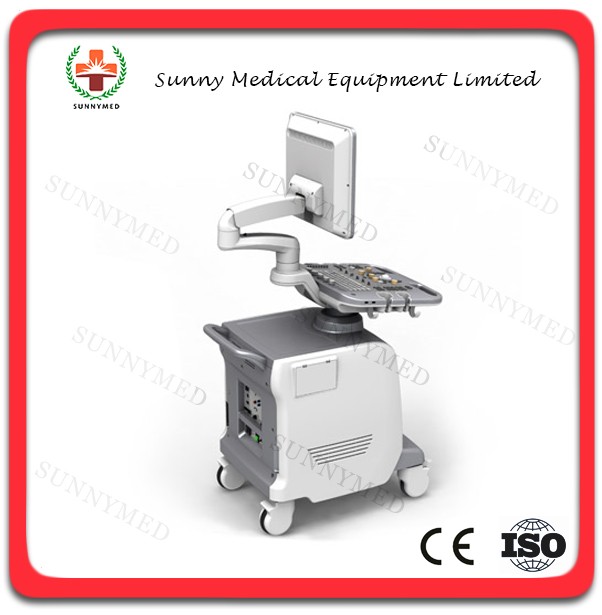

 Main unit with 19″ high resolution and contrast LCD Monitor

1 pc 3.5 MHz convex probe D3C60L

1 pc 7.5 MHz Linear probe D7L40L

1  pc 6.0 MHz Trans-vaginal probe

1 pc 3.0 MHz Phased array probe (Adult) D3P64L

 320GB hard disk, DVD-R/W and 6 USB ports

 B, 2B, 4B, B/M, M, CFM, PW, Power Doppler/Directional PD, Duplex, Trapezoidal, Chroma B& M&PW

Measurement & calculation software packages (General, OB&GYN, Basic Cardiac )

Easy View TM image archive system

Optional Parts

 4D package(4.0 MHz 4D volume probe V4C40L +4D module + 4D software)

 4D module (Must order with main unit if need to be upgraded to 4D in future)

Dimensions and Weight

Dimensions of main unit (approx.):830mm (Length)* 520 mm (Width)*1458mm (Height)

 Net weight of main unit (approx):125kg (no probe included)

Electrical Power

 Power supply voltage: AC 100V~240V

Power supply frequency: 50/60 Hz

Power consumption: 600 VA

Operation Panel

.Control panel

 l .Alphanumeric keyboard

 l .8 TGC Slides

 l .Interactive backlit keys

Display Screen

 l .High resolution VGA color LCD

– Diagonal dimension: 19 inch

– Resolution: 1280X1024

– Brightness adjustment

 l .Integrated speaker

– Volume adjustable

System Overview

 Applications:Abdomen, Cardiology, Gynecology, Obstetrics, Urology, small Part, Pediatrics, Vascular, Musculoskeletal

Transducer Types

 3.5 MHz Wide Band Convex Probe (D3C60L)

 7.5 MHz Wide Band Linear Probe (D7L40L)

 6.0MHz Wide Band Transvaginal Probe (D6C12L)

 3.0 MHz Wide Band Phased Array Sector Probe (D3P64L)

 5.0MHz Wide Band Pediatric Probe (D5C20L)

 4.0 MHz Wide Band 4D Probe (V4C40L)

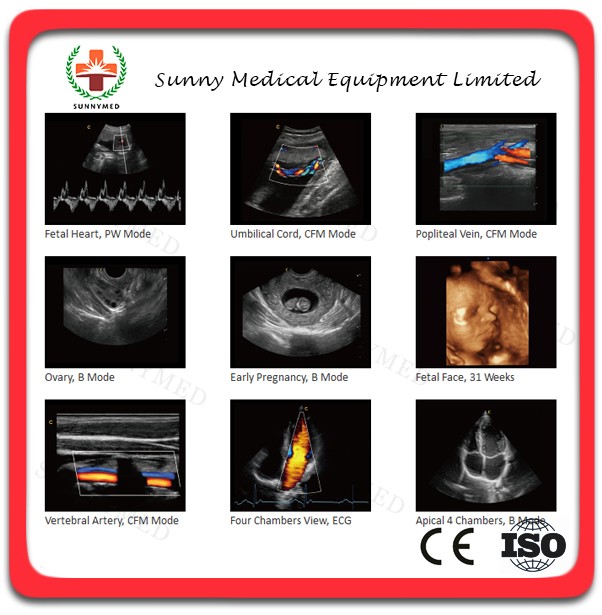

 Image Modes: B,B/B,4B,B/M,CFM (Color Flow Mapping),B/BC(B and CFM simultaneous comparison display),

PD (Power Doppler) Mode (CPA),Directional PD (Power Doppler) Mode,PW (Pulse Wave) Mode,HPRF Mode

Optional:

 CW (Continuous Wave),Color M,Steering M,Free-hand 3D,Real-time 4D (upgradable),Trapezoidal imaging (only for linear probe)

Panoramic imaging :

Real-time Duplex : B+CFM

Real-time Triplex : B+CFM+PW

Display Mode

l .Simultaneous Capability

– B/PW,B/CFM or PD (CPA), Directional PD,B/M, Real-time Triplex Mode (B + CFM or PD (CPA)/PW)

– Dual B (B/B)

– B/BC in real time

l .Multi Image Split Screen

– Live and/or frozen

– B + B/CFM or PD (CPA)

– Independent Cine playback

l .Pan Zoom

l .Chroma

– Chroma B

– Chroma PW

– Chroma M

l .Trapezoid imaging (only for linear probe)

l .THI

l .Quad Screen Display
