Description

Technical specifications:

Display mode

B, B|B,4B, B|M,M,B|B,B|C|D,B|D,PW,B|PW,CF,CW,4D

Triplex mode

Zoom

Real time zooming

10 Steps:  ×1.0, ×2.0, ×3.0, ×4.0, ×5.0, ×6.0, ×7.0, ×8.0, ×9.0, ×10.0

Selectable zooming position

Focus

Continuous dynamic focus

1~16 selectable transmit focus

Acoustic lens focus

1, 2, 3, 4 focus

Memory

Cine memory

B-mode

M-mode

Hard disk 500GB

Weight

Gross weight:105kg

Net weight:65kg

Power Requirements

Voltage: AC 100V to 240V±10%

Frequency: 50Hz±1Hz

Rated Power: 250VA

Operation Conditions

Ambient temperature: 0℃to +40℃

Relative humidity: 38%  to 85%

Atmospheric Pressure: 700hPa to 1060hPa

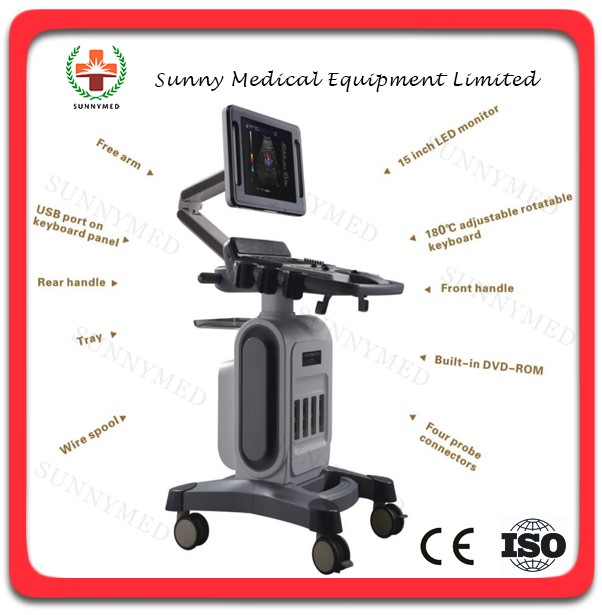

Appearance:

Smart and compact design

15 inch LED monitor

Flexible free arm

Rotatable operation panel

Backlit keyboard, 8TGC

Four active probe connectors

Six probe holders

Four casters with brake
