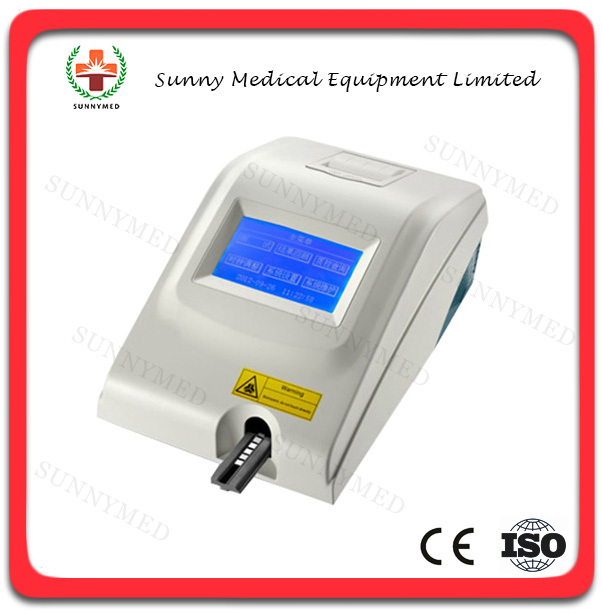

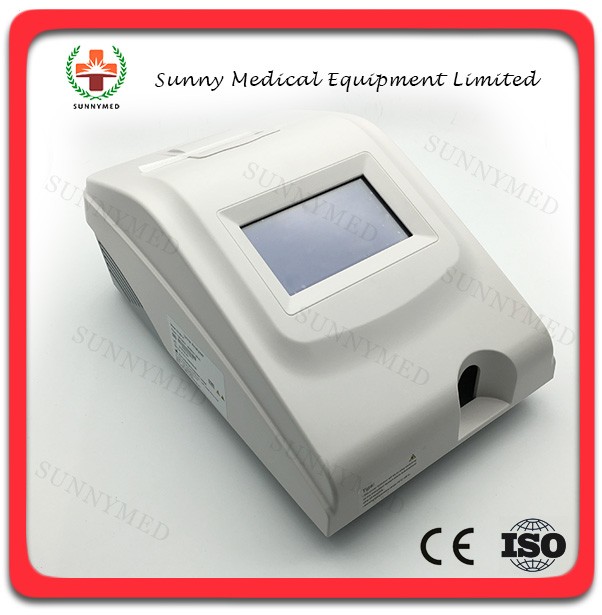

SY-B014 Urine chemistry system lab handheld urine analyzer
Brand Name: Sunnymed
Model Number: SY-B014

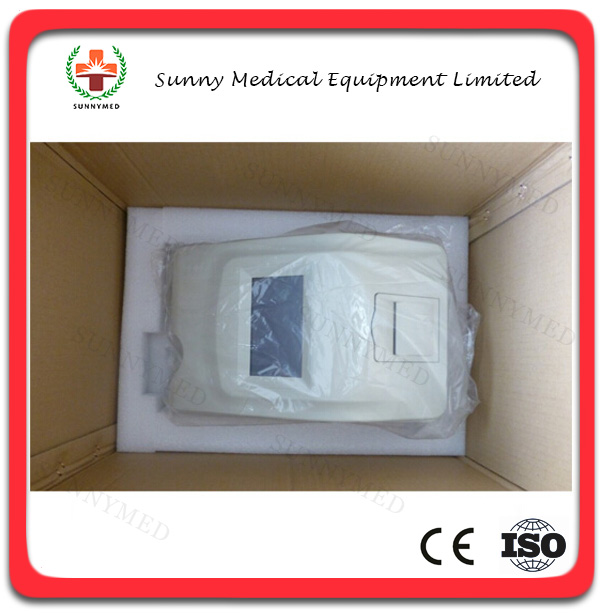

Packaging Details: Carton or wooden case, standard export packing
Delivery Detail: In 10 days after payment received
Port: Guangzhou
Description
Easy-to-operate & compact
Open reagent strip
Cold light source with long shelf life
Automatic calibration makes more accurate
Tests save automatically after power off
Memory: 1000 samples, 11000 tests
Large LCD display
Specifications:
Test items: pH, Nitrite, Protein, Ascorbic Acid, Glucose, Bilirubin, Blood, Urobilinogen, Ketone, Specific Gravity, Leukocyte
Method: Dual-wavelength Reflectance Photometry
Display: Large 240*128 graphic LCD with function to adjust screen’s angel
Throughput: Up to 120 tests per hour
Printer: Inner Thermal printer & port for external printer
Wavelength: 450nm\550nm\650nm
Memory: 1000 samples, 11000 tests
Test mode: Normal mode, Continuous mode
Power Requirement: 220VAC± 10% 50W
Working Environment: Temperature: 10-30 ºC
Humidity: 20%-80%
Dimension: 360mm X 282mm X 115mm(L*W*H)
Weight: 6kg
Test Items: Glucose, Bilirubin, Ketone, Specific Gravity, Blood, pH, Protein,
Urobilinogen, Nitrite, Leukocyte, Vitamin C
Test Method: Dry Strip color-developing method
Test Principle: Reflective Photometry with dual-wavelength
Light Source: Cold Lamp with high brightness and long lifetime
Test Mode: Single and Continuous test mode are selectable
Test Slot: Using Sliding Slot, Easy to clean and replace, Lower the Carryover
Test Strip: Provide original strips
Display: LCD with high brightness for Urine Analyzer .
Language: Chinese and English are selectable
Memory: Saving more than 1000 samples results, and auto recover the results when
power off during working

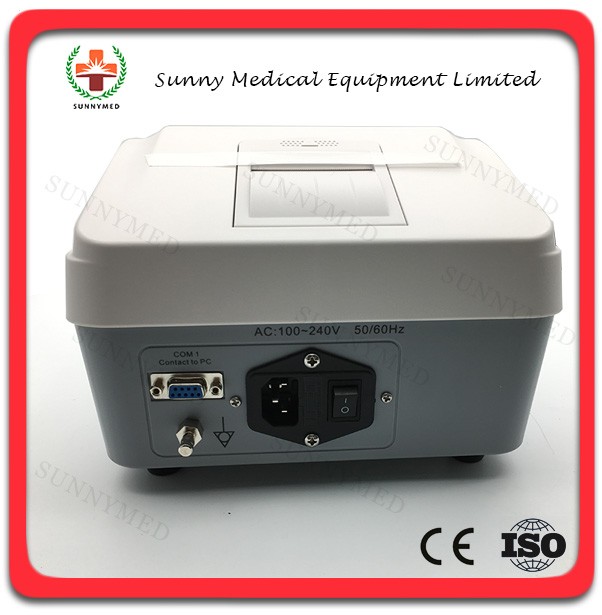

Interface: RS-232 serial port, can be connected to external printer and computer
Printer: Inner thermal printer, can be connected to external printer
Report format: Half quantitative and qualitative
Result unit: SI unit and routine unit are selectable
Status Check: Auto checking the status during power on and off, auto indentify the alarm.
Working Environment: Temperature:10°C~30°C;Humidity:20%RH~80%RH
Voltage:85-264V, Auto adapt according to the input voltage
Power : ≤80W
Quality System: Recognized by TUV and CMD
