Description

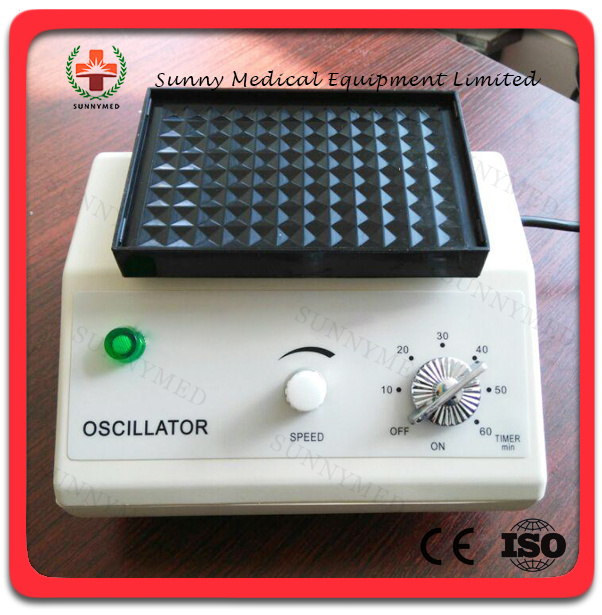

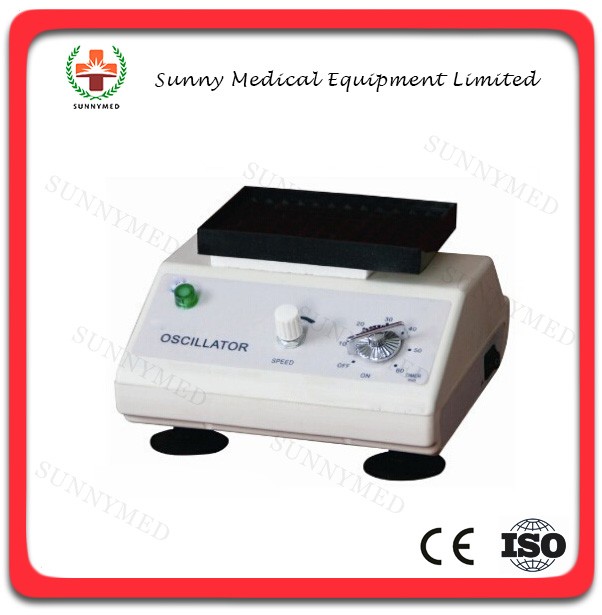

The micro-oscillator is a clinical analysis for each of the hemagglutination test, complement fixation test,

latex agglutination test and other essential equipment, the equipment for research institutions, health

departments and biochemical laboratories for small samples, biological bacteria, viruses immunization,

clinical examination and routine laboratory analysis.

Specification:

1, the oscillation frequency range: Minimum 25-30 (Hz)

Maximum 45-60 (Hz)

2, power supply voltage: AC 220V ± 10% 50 ± 2Hz

3. Power consumption: <10VA

4, Volume: 210 mm × 192 mm × 115mm

5. Timing range: 0-60 minutes

6. Weight:2KG

Feature:

The instrument is fixed in an eccentric weight shaft micro-motor, when the motor rotates, the eccentric moment,

and reaction to the hoop-shaped rubber suspension, so that vibration, to form a bottom, left and right, back and

forth displacement movement, formed trajectories closed spiral of periodic motion, so that the reaction mass points

along the track direction of vibration on the tray recess porous glass plate kept within the movement, to achieve

uniform mixing. This instrument uses SCR DC motor speed control circuit is simple and reliable. The instrument is

easy to operate, high sensitivity, low dosage and detection speed.
