Technical Specification:
| Principle: | Electrical resistance for counting,hemiglobincyanide method and SFT method for hemoglobin |
| Parameters: | 3-part differential of WBC;20parameters + 3 color histograms(WBC/RBC/PLT) |
| Sample Consumption: | Venous Mode:9.6μL Capillary Mode:9.6μL Pre-diluted Mode:20μL |
| Operation Mode: | Windows operation system with keyboard&mouse input |
| Throughput: | 60 samples/hour |
| Storage: | 12,000 sample results inclusive of the histograms |
| QC Mode: | L-J,X,X-B,SD,CV,QC histogram |
| Cross Contamination Ratio: | WBC/RBC/HGB<0.5%,PLT<1% |
| Performance: | Parameter Repeatability(CV%) Linear Range
WBC≤2.0% 0.00-99.9×109/L RBC≤1.9% 0.00-9.99×1012/L HGB≤1.9% 0-300g/L MCV≤0.4% 40-150fL PLT≤4.0% 0-999×109/L |
| Display: | 8.4″LCD( resolution:640×480 ) |
| Reference Value: | Baby,Kid,Woman,Man,Normal and Customization |

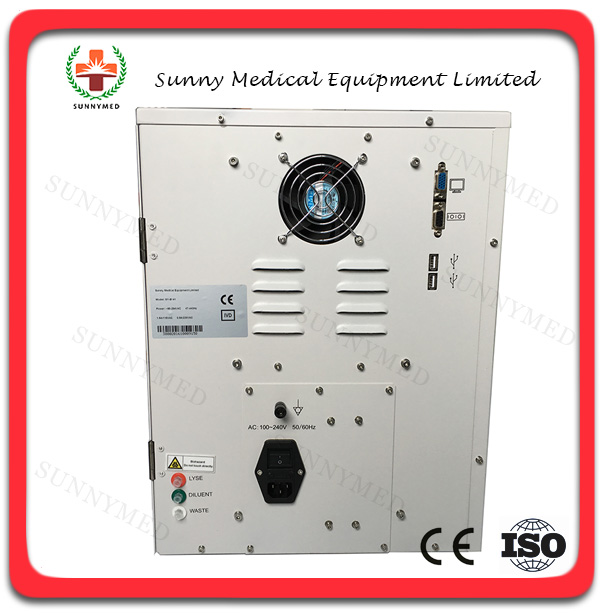

| Interface: | 2xUSB,1xparallel(for external printer),1xVGA(for external monitor),
2xPS/2,2xRS-232(fornetwork); |
| Printer: | Built-in thermal recorder,optional external printer,eight report formats |
| Environment Requirement: | Temperature:15°C~35°C;Humidity:10%-90%; |
| Power supply: | AC100-240V 50/60Hz |
