Description

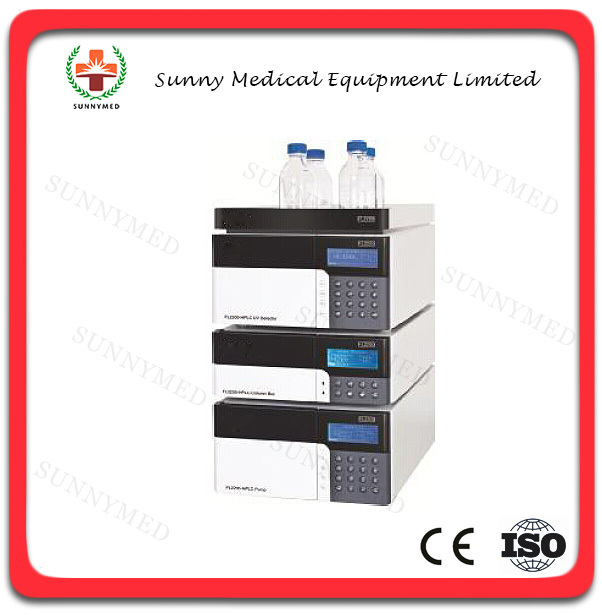

Instrument Introduction

High performance liquid chromatograph is the luck sets up the company the process to

optimize in the original High performance liquid chromatograph’s foundation turns to a

new generation product, may choose and match the online purifier, and compatible it reverse

control liquid chromatography workstation and general chromatograph workstation, novel

outward appearance, higher reliability, stability and easy operational, is your laboratory best choice.

*Double beam monochromator, dual lens flow cell, pursue superelevation sensitivity.

*Original creative pressure feedback control system, maximum limit reduces the system dead volume.

*Flexible modular structure, many kinds of separations,examination pattern.

*Liquid chromatograph workstation control’s instrument has intellectualized supervisory

system, have functions instrument self-checking,self-adjustment etc.

Pump

• Flow range: 0.001~9.999ml/min
• Increment/step: 0.001ml
• Flow precision≤0.1%RSD
• Max work pressure: 42MPa

UV detector

• Wavelength range: 190~700nm
• Wavelength precision:±1nm
• Wavelength repeatability: ±0.1nm
• Dynamic baseline noise: ±0.5*10-5AU
(wavelength 254nm, flow velocity 1ml/min, pure methanol)
• Dynamic baseline drift: ±0.5*10-5AU
(wavelength 254nm, flow velocity 1ml/min, pure methanol)
• Detection limit: ≤4*10-9g/ml
(wavelength 254nm, flow velocity 1ml/min, pure methanol, sample:
naphthalene)
• Spectrum bandwidth: 8nm
• Flow cell volume: 8μl
• Optical distance: 10mm

Column oven
• Temperature: Room temp. +3℃ ~80℃
• Precision: 0.1℃
• Can install 2 LC column

Basic info
• Dimension: 450*400*Xmm(L*W*H)
• Net weight: 30kg(Isocratic), 50kg(Binary gradient)
• Power: 350W(Isocratic), 450W(Binary gradient)
• Voltage: AC220V±22V, 50Hz±0.5Hz
