Description

Features:

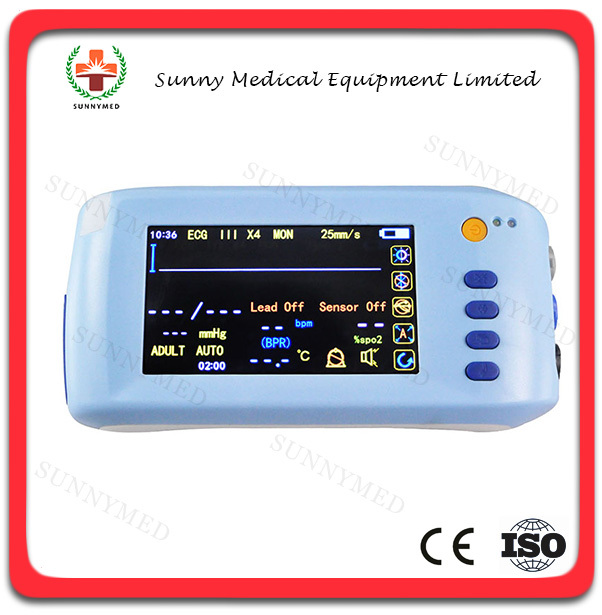

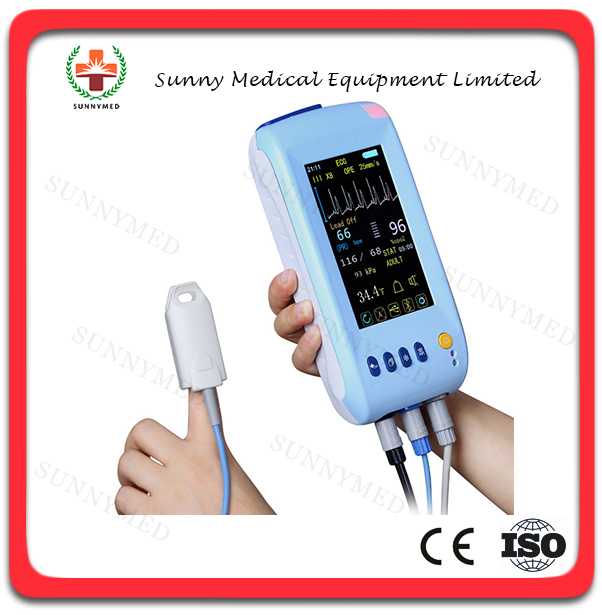

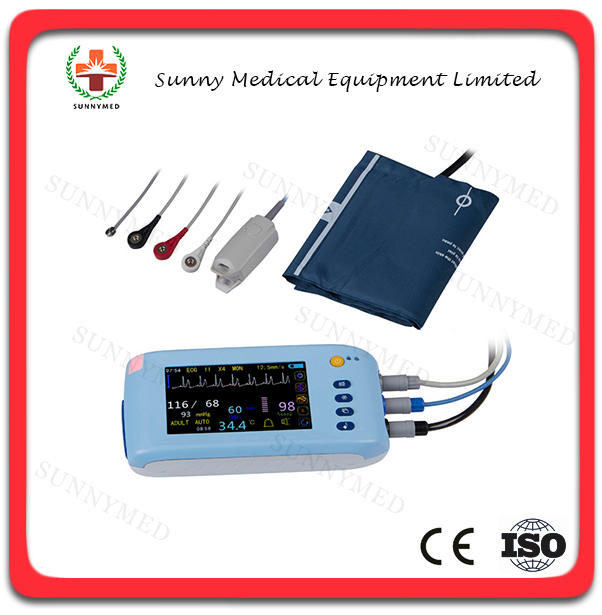

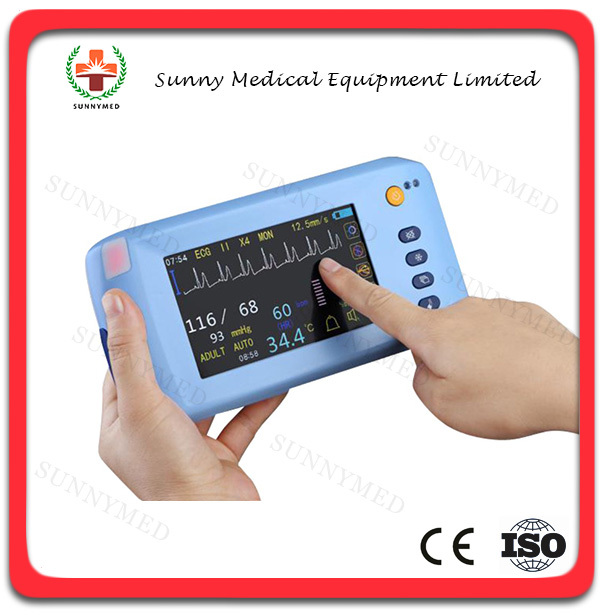

Touch screen,5.0 inch color TFT-LCD, simple for operating, quickly&accurately measure the data;

Build-in rechargeable Li-battery, up to 15 hours running time, support AC and DC power;

Adjustable audible and visual alarms, and sensor off alarm;

Long time monitoring and sleeping monitoring;

Easy to carry, suitable for ambulance center, has the stand for fixing;

Prior:

Storage and review data up to 3888groups via Trend Graph and Trend List.

USB and Bluetooth data upload;

Horizontal and vertical display selectable;

Big font screen interface is easy to observe;

Back light can be adjusted;

Free advanced software are all standard on free(Bluetooth software; VSDV software for download

the storage data; Guardian software for transmitting the real-time data and storage all data and

waveform; Healthaids software for Android mobile)

Optional Bluetooth printer to print the waveform and data out.

Specification:

1. General Specifications:

Size: 209mm×104mm×47.5mm

Net Weight: 655g

Display Specification

Measurement Display: color TFT- LCD/touch screen

Power Supply Indicator: Dual-color LED (red/green)

Charging indicator: A green LED

2. Power Supply

AC Power Adaptor

Input: 100~240VAC, 50/60Hz, 0.7A

Output: DC 5V, 1.5A

Battery

Li-ion rechargeable battery, 3.7V/7200mAH

Operating Time: 15 hours with full battery capacity.

(Condition: 25°c NIBP working period is 15 minutes)

Recharge Time: 10 hours.

3. Environment

Temperature

Working:0°c~45°c

Transport and Storage: -25°c~85°c

Humidity

Working:30% ~85 %

Transport and Storage: 30% ~95 % (no condensation)
