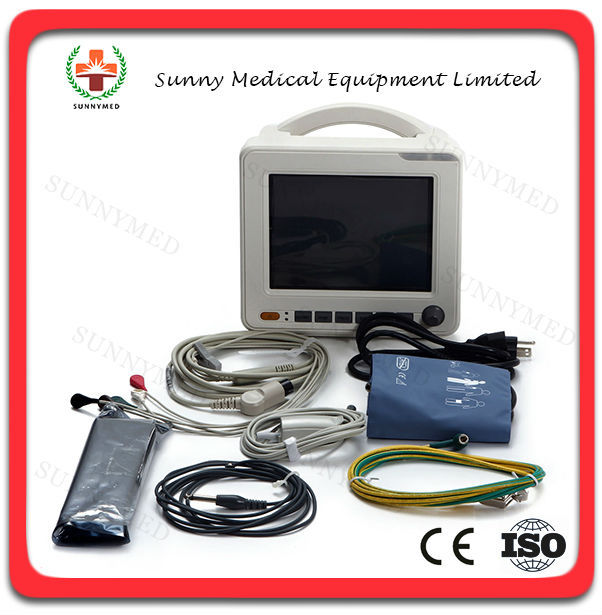

SY-C004 Sunny medical portable ICU patient monitor
Brand Name: Sunnymed
Model Number: SY-C004
Packaging Details: Carton or wooden case, standard export packing
Delivery Detail: In 10 days after payment received
Port: Guangzhou
MOQ：1set
Description
Features:
- 8” screen with true color, wide viewing angle, high brightness LCD display.
- HR/PR, NIBP, RR, ECG, SpO2, TEMP
- Simple and friendly operating display interface.
- Rechargeable lithium battery provides convenience for patients’ moving.
- Playback and browse function for long term waveform and monitor data record.
- Optional printing output function, alarm triggers printing.
- Auto double alarm with audible and visible signals
- Anti-defibrillation, anti-interference from high frequency electric knife
- A full-synchronistic lead multi-channel ECG display…
- This medical equipment can be used in ICU, CCU and operation room.
- Suitable for adult,pediatrics and neonate patients.
Specification:
ECG
Lead configuration
Standard 3-lead or 5-lead
3-leadRA,LA,LL,Lead method:I,II,III
5-leadRA,LA,LL,RL,V,Lead method:I,II,III,aVR,aVL,aVF,V
Increase
´250,´500,´1000,´2000
HR
Range
Adult 15 ~ 300bpm (beat/minute)
Neonatal baby/children 15 ~ 350 bpm(beat/minute)
Precision±1% or ±1bpm,the larger prevails
Resolution 1 bpm(beat/minute)
Sensitivity
> 200 uV (Peak-to-peak value)
Input Impedance
> 5 (megohm)
Bandwidth
Diagnostic mode0.05~130Hz
Monitoring Mode 0.5~40Hz
Operation mode1~20Hz
Common Mode rejection Ratio
Diagnostic mode> 90 dB
Monitoring Mode > 100 dB
Operation mode> 100 dB
Pole Polarization Vvoltage Range
±300mV
Pacing Pulse Test
Test pacing pulse in accordance with the following conditions:
Amplitude:±2 mV ~ ±700mV
Width: 0.1ms ~ 2ms
Risetime: 10us~100µs
Pacing pulse inhibition
When pacing analysis switch is on, pacing pulse in accordance with the
following conditions are restrained, but affection against HR calculation.
Amplitude:±2 mV ~ ±700mV
Width: 0.1ms ~ 2ms
Risetime: 10us ~ 100µs
Baseline Recovering Time
After defibrillation< 3 seconds
Signal Range
±8 mV (Peak-to-peak value)
Calibrating Signal
1mV(Peak-to-peak value),precision±5%
ST Segment Measuring Volume
Measuring range: -2.0mV ~ +2.0mV
Measuring precision: Ranging -0.8 mV~+0.8mV, measuring error is
±0.02mV or ±10%,. The larger prevails.
No definition for other ranges.
RESP
Measuring Method
RA-LL impedance
RESP Impedance Measuring Range
0.3~3Ω
Base Impedance Range
