Description

Features:

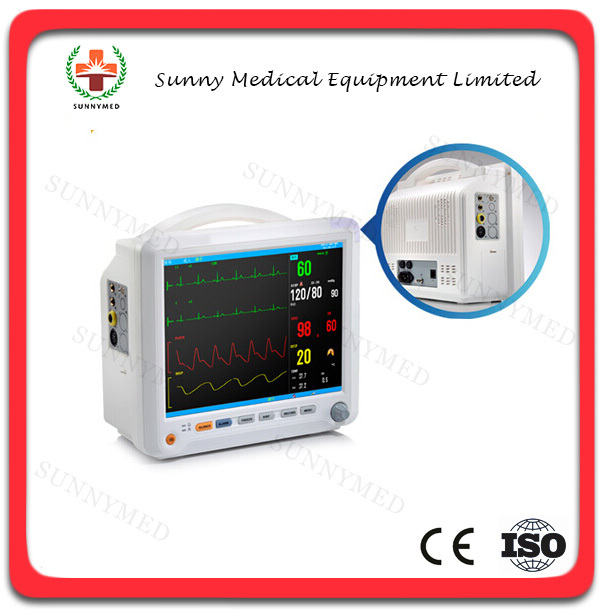

l 12.1” screen with true color, wide viewing angle, high brightness LCD display.

l HR/PR, NIBP, RR, ECG, SpO2, TEMP

l Simple and friendly operating display interface.

l Rechargeable lithium battery provides convenience for patients’ moving.

l Playback and browse function for long term waveform and monitor data record.

l Optional printing output function, alarm triggers printing.

l Auto double alarm with audible and visible signals

l Anti-defibrillation, anti-interference from high frequency electric knife

l A full-synchronistic lead multi-channel ECG display…

l This medical equipment can be used in ICU, CCU and operation room.

l Suitable for adult,pediatrics and neonate patients.

Standard configuration:

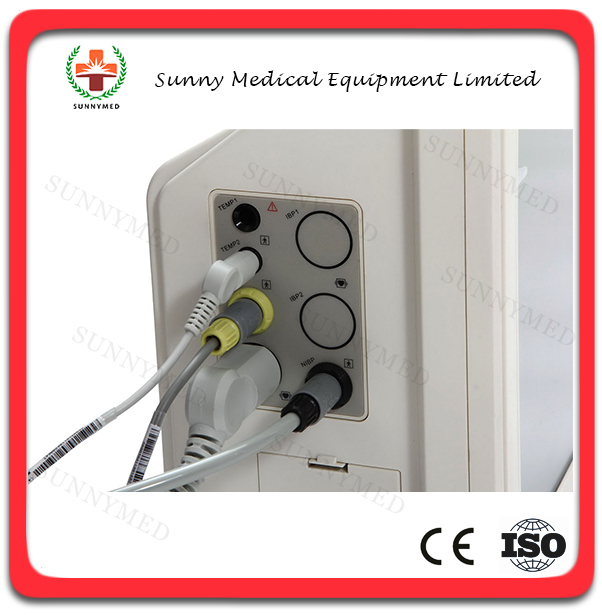

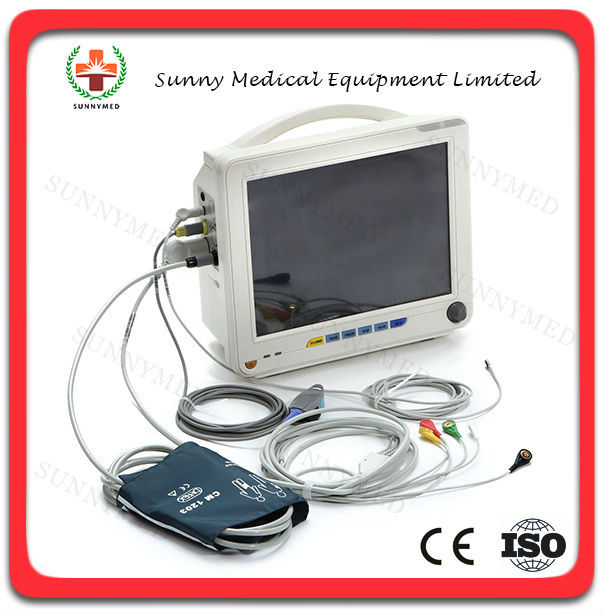

l HR/PR, NIBP, RR, ECG, SpO2, TEMP, Rechargeable lithium battery

Optional:

l Dual TEMP

l Dual IBP

l ETCO2

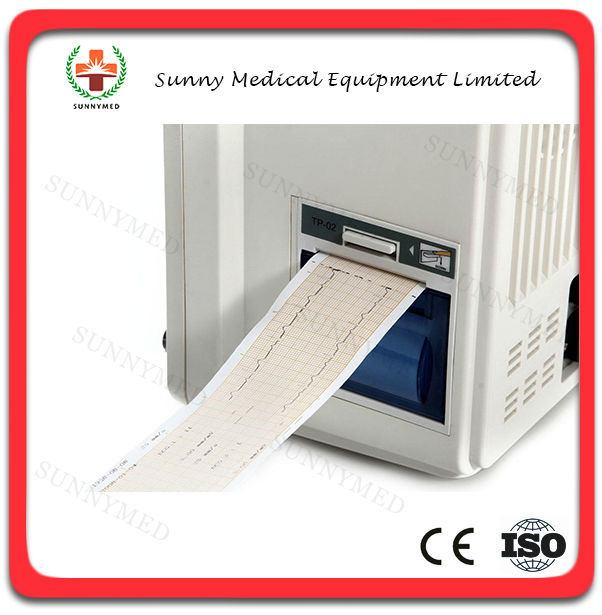

l Thermal recorder

l Wall mount

l Trolley

Specification:

ECG

Lead configuration

Standard 3-lead or 5-lead

3-leadRA,LA,LL,Lead method:I,II,III

5-leadRA,LA,LL,RL,V,Lead method:I,II,III,aVR,aVL,aVF,V

Increase ´250,´500,´1000,´2000

HR

Range

Adult                   15 ~ 300bpm (beat/minute)

Neonatal baby/children       15 ~ 350 bpm(beat/minute)

Precision±1% or ±1bpm,the larger prevails

Resolution   1 bpm(beat/minute)

Sensitivity

> 200 uV (Peak-to-peak value)

Input Impedance

> 5 (megohm)

Bandwidth

Diagnostic mode0.05~130Hz

Monitoring Mode    0.5~40Hz

Operation mode1~20Hz

Common Mode rejection Ratio

Diagnostic mode> 90 dB

Monitoring Mode    > 100 dB

Operation mode> 100 dB

Pole Polarization Vvoltage Range ±300mV

Pacing Pulse Test

Test pacing pulse in accordance with the following conditions:

Amplitude:±2 mV ~ ±700mV

Width:    0.1ms ~ 2ms

Risetime:      10us~100µs

Pacing pulse inhibition

Amplitude:±2 mV ~ ±700mV

Width:   0.1ms ~ 2ms

Risetime:     10us ~ 100µs

Baseline Recovering Time

After defibrillation< 3 seconds

Signal Range

±8 mV (Peak-to-peak value)

Calibrating Signal

1mV(Peak-to-peak value),precision±5%

ST Segment Measuring Volume

Measuring range: -2.0mV ~ +2.0mV

No definition for other ranges.

RESP

Measuring Method

RA-LL impedance

RESP Impedance Measuring Range

0.3~3Ω

Base Impedance Range

200~4000Ω

Bandwidth

0.1~2.5Hz

RESP Rate

Range

Adult          0~120BrPM

Children and neonatal baby 0~150 BrPM

Resolution    1 BrPM

Precision    ±2 BrPM

Asphyxia Alarm

10~40 seconds

NIBP

Measuring Method

Pulse wave oscillometry

Work Mode

Manual/Automatic/STAT

Measuring Interval of Automatic Measuring Mode

1,2,3,4,5,10,15,30,60,90,120,180,240,480 minute(s)

Measuring Time of STAT Mode

5 minutes

PR range

40 – 240 bpm

Overvoltage protection

Adult mode        300 mmHg

Children mode        240 mmHg

Neonatal baby mode150 mmHg

SpO2

Range        0~100%

Resolution1%

Precision    70~100%:±2 DIGIT

0%~69%:no definition given

PR

Range        20~300bpm

Resolution 1bpm   Precision    ±3bpm
