Description

Features:

1. Small, light, easy for carrying and handling;

2. Builtin Li_ion rechargeable battery by connecting USB power cable to PC,longtime operating time(Can operate 15 hours with fully charged battery);

3. Audio and visual alarm,sensor-off alarm, alarm limit can be set;

4. Automatic Power-off within 3 minutes;

5. Battery capacity indicator.

Applications:

Pulse Oximeter can be applied in the hospital’s operation room, ICU, clinic section office, Out-patient department, sickroom and emergency treatment.

H.S.Code: 90189090

Dimension:120x63x23mm

Net Weight: 190g

Gross Weight: 750g

Package Size: 210x155x60mm

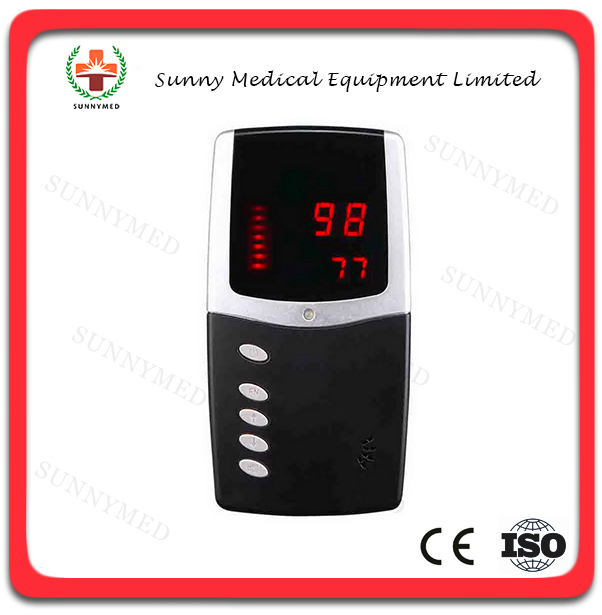

Color: White and Black

Standard accessories:

Handheld SpO2 patient monitor main unit 1 piece

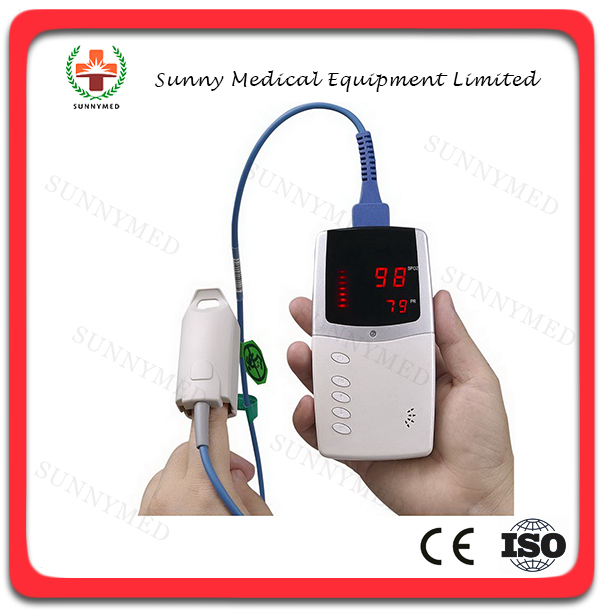

Adult finger SpO2 sensor 1 piece

USB Power Cable 1 piece

External USB charger 1 piece

The operator’s manual 1 piece

Selectable accessories:

Pediatric finger/toe SpO2 sensor 1 piece

1. General

Monitoring parameters: SpO2, PR, Pulse strength

Patient range: Adult, pediatri

Signal sockets: SpO2 socket,USD power cable socket

Display screen

SpO2 display: 3-digit and 7-segment red LED nixie tubes

PR display: 3-digit and 7-segment red LED nixie tubes

Pulse strength/ Battery capacity display: 8- segment and bar-graph red LED nixie tube

Battery indicator: A red LED

2.Electrical specifications:

Working voltage: D.C. 3.7V

AC USB Power Cable

Input: AC 100 V~240V, 50/60Hz, 5VA

Output: 5V D.C.

Internal battery

Type: 3.7V Li-ion rechargeable battery

Run Time: 15hours continuous operation with a new,

fully charged battery (Environment temperature is 25°C)

Recharge time: 8 hours

3.Environment

Temperature

C ~°Operation: 0 C°45

C°C ~ 60 °Transportation and storage: -20

Humidity

Operation: 15% ~95 %( nonconducting)

Transportation and storage: 10% ~95 % (noncondensing)

Altitude

Operation: 86 kPa ~106 kPa

Transportation and storage: 50kPa~106 kPa

4.Parameter Specifications

SpO2:

Range: 0%~100%

Resolution: 1 %

2 % (90% ~100%), unspecified (±Accuracy: <70% )

PR:

Range: 0 bpm ~250bpm

Resolution: 1bpm

Accuracy: ±2bpm
