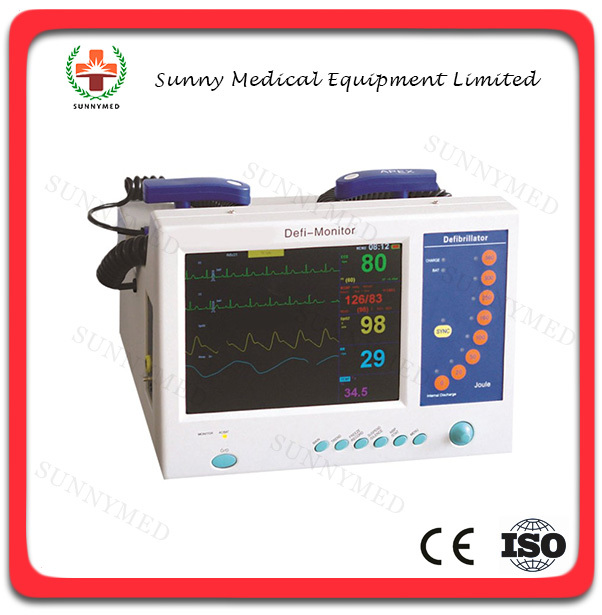

SY-C028 ICU medical equipment defibrillator monitor
Brand Name: Sunnymed
Model Number: SY-C028
Packaging Details: Carton or wooden case, standard export packing
Delivery Detail: In 10 days after payment received
Port: Guangzhou
MOQ：1 set
Description
Specifications :
ECG
ECG lead: Ⅰ,Ⅱ,Ⅲ,Avr,Avl,Avf,V1~V6
S-T segment analysis :-2.0~2.0mv
Protegtion:Withstand 4000vAc/50Hz voltage in isolation and work against eletrosurgical interence and defibrillation
ECG lead/cable:General lead/cable for adult,pediatric and neonatal patients
NIBP
Method:Automatic oscillation
Working mode: Manual/Automaic
Measurement range:Adult 10~250mmHg
Pediatric10~250mmHg
Neonatal 10~135mmHg
Temperature(TEMP)
Measurement range:20~45°C
Resoluion:0.1°C
Respiration(RESP)
Measurement method thoracic impedance
Spo2
Display :spo2 value,pulse histongram,waveform,Pulse
Range: 0~99%for adult,pediatric and neonatal patients
Probe :standard adult finger clip
optional pediatric Y-type clip and neonatal wrap
Pulse
Pulse range :0~300bpm
Pulse accuracy:±2bpm
Defibrillator
Non-synchronizer: outlife difibrillator
Sine wave: monophasic technology
Energy:0,20,50,100,160,250,300,360 joule
Charging time :at 360J less than 10 sec
Paddle options :reusable extermal adult paddles(pediatric paddles integrated)
Power
operates from the mains(AC)and with its intemal NIMH battery
