Features:
LED bulb(low-temperature,low-pressure,high-brightness) with long lifetime to make the illumination uniformly and bright.
The illumination brightness can be adjusted continuously.
Imaging clearly,strong dimensional sense and large field of view range.
The main body part of this device adopts engineering plastics and is designed to be compact and exquisite.
Super lightweight design, reduce fatigue,operation is very convenient.
The portable power supply is suitable for surgery, ward round and consultation.

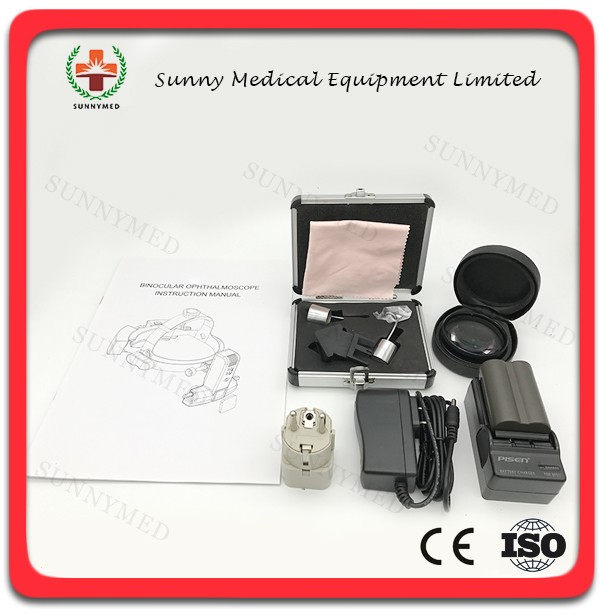

This device is equipped with color filter,teaching mirror and sclera depressor to be more handy in operation.
| Specifications: |

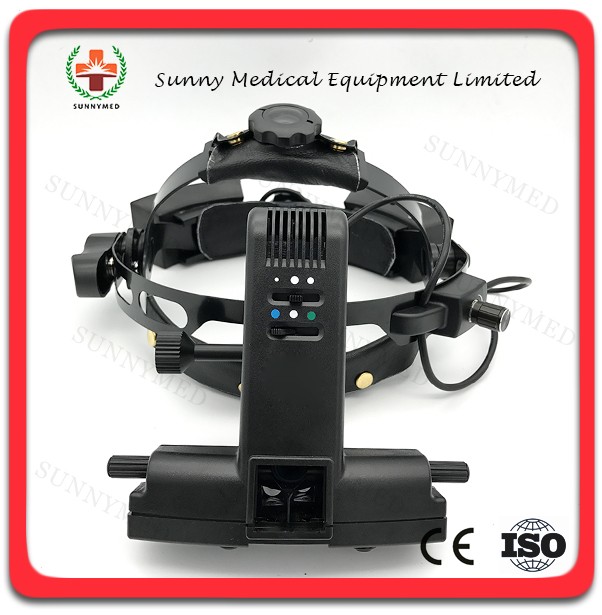

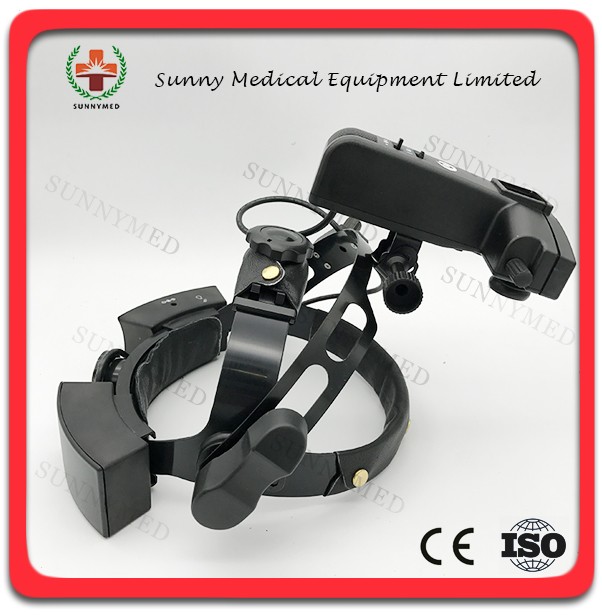

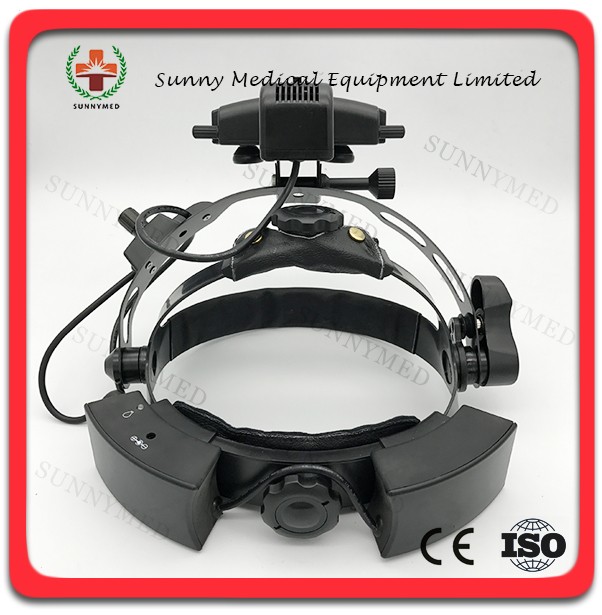

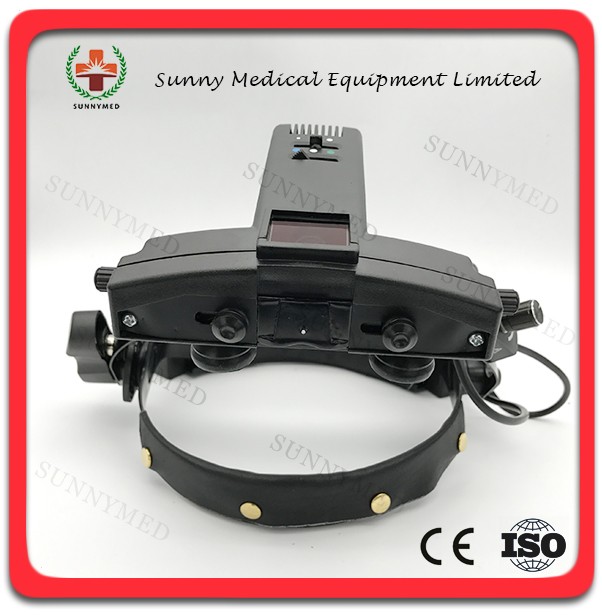

| Type: Head-worn binocular indirect ophthalmoscope |
| Work distance: 50.5mm(from the patient’s corneal to the aspheric lens) |
| Pupillary distance: Adjustable from 52-74mm |
| Intensity of illumination: Stepless adjustable with the maximum intensity not less than 500Lx |
| Lathe-hedd: 530-630mm in circumference,85-125mm in depth |
| Light spots: Three spots, big, middle and small |
| Filters: Three filters including redfree, colourless and cobalt blue |
| Teaching mirror: Coated mirror with both sides viewing |
| Input voltage: 220V±10%V |
|
Input frequency: 50Hz±1Hz |
| Input power: 20VA |
| Power supply of illumination: Halogen bulb 6V/10W |
| Electric safety standard: GB9706.1-1995 ClassⅡ,type B |
| Main unit’s dimension: 142X48X128mm |
| Main unit’s weight: 280g |
