Description

Features:

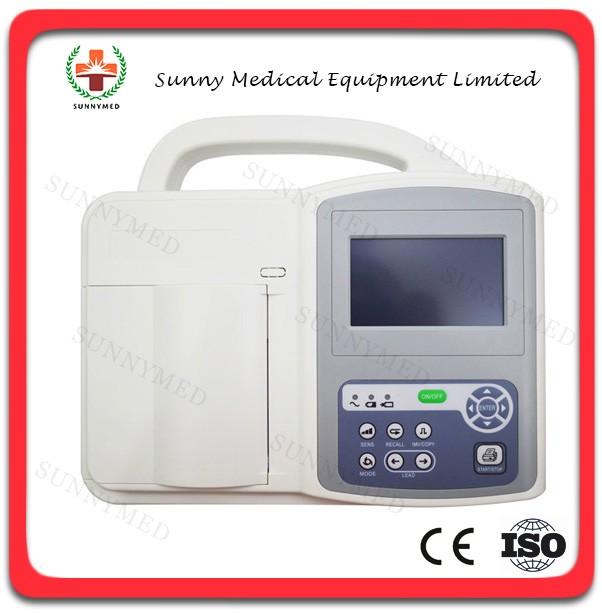

*3 channel ECG machine with automatic interpretation

*Manual/Auto working Modes.

*Simultaneous 12 leads acquisition and 3 channel recording with high resolution thermal printer

*4.3 inch Color TFT LCD display, ECG wave and friendly menu setting.

*Support Touch Screen and keypad input ways

*Lead-off detection and alert

*Digital filtering, resisting baseline, drift , AC and EMG interference

*Built-in USB /RS232 interface (ECGNET software optional)

*Built-in rechargeable Li-ion battery support less than 3 hours continuously work and AC power supply

at 90-240V@50/60Hz

Technical Specifications:

Lead Standard 12 leads

Acquisition A/D Simultaneous 12leads

Converter 16bit/24 bit 1000Hz

working mode Manual mode, Auto modes

Filter AC Filter: 50Hz/60Hz; EMG, Filter : 35Hz/45Hz;

Anti-Drift-Filter : 0.15Hz(Adaptive)

CMMR larger than100dB(with AC filter)

Input circuit Floating ,protection circuit against defibrillator effect

Input circuit current equal or less than 0.05μA

Input impedance larger than 50 MΩ

Patient current leakage less than 10μA

Calibrating voltage 1mv±2%

Skin Voltage tolerance ±600mv

Time constant: 3.2s

Frequency response 0.05Hz-150Hz (-3dB)

Noise level equal or less than15 μVp-p

Sensitivity Threshold equal or less than 20 μV

Page speed :25,50mm/s(±3%)

Sensitivity: 2.5,5,10,20,mm/mv

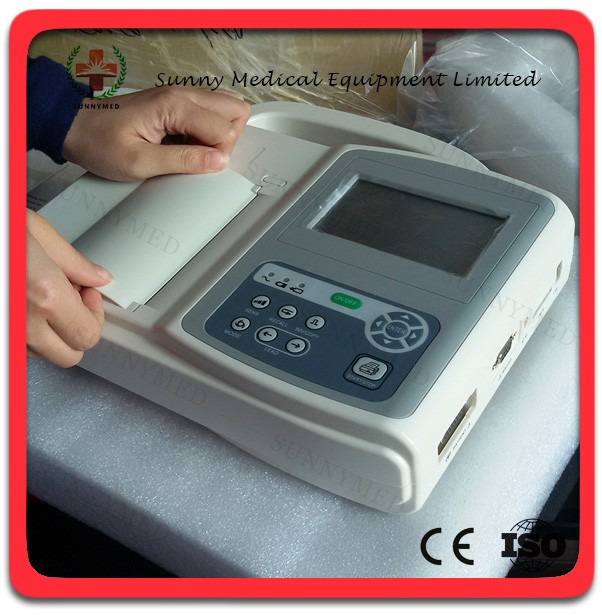

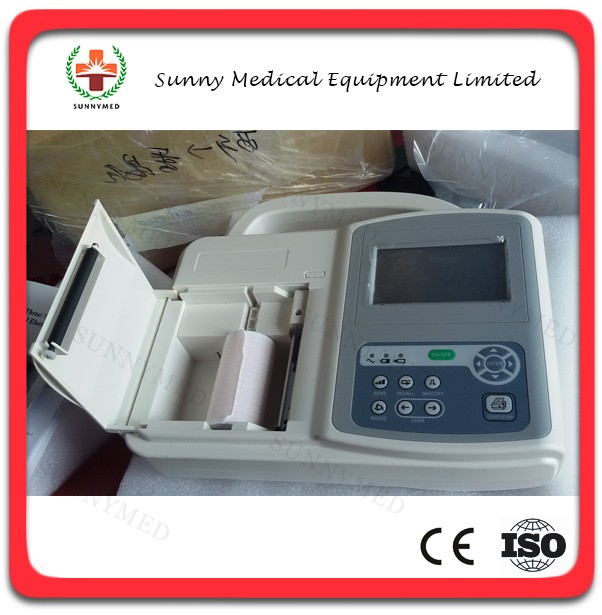

Printer :Thermal printer, adjust print speed: 5, 10, 12.5,25,50mm/s(+-3%)

Paper: 80mm×20m,roll

safety level ICE60601-1classl,type CF

Power supply :DC 14.4V(2000mAh)rechargeable lithium battery

Dimension: 285mm*265mm*72mm

Weight :2.5kg (with battery)
