Description

Features:

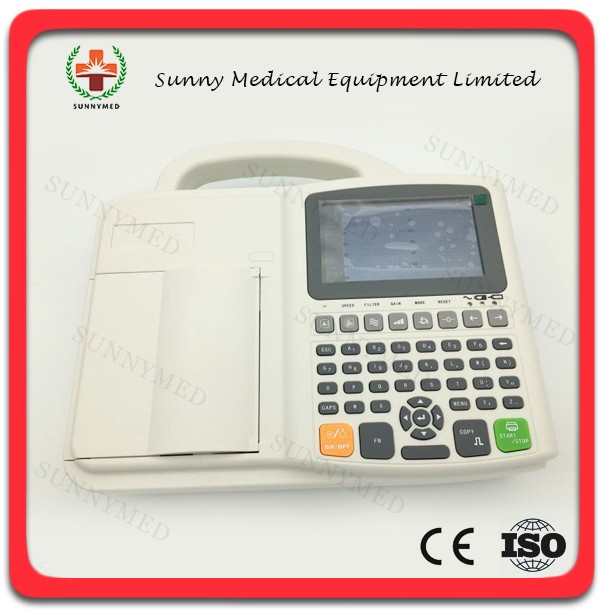

1.3 channel ECG machine with interpretation

2.5.0” color TFT LCD display

3.Simultaneous 12 leads acquisition and 1, 1+1, 3 channel (Manual/Auto) recording with high resolution thermal printer

4.Manual/Auto working modes

5.Use digital isolation technology and digital signal processing

6.Baseline stabilization inspection

7.Full alphanumeric silicon keyboard

8.Support U disk storage

9.Support USB function (Optional)

Technical Specifications:

Lead: Standard 12 leads

Acquisition: Simultaneous 12 leads

A/D Converter: 14bit

Sampling Rate: 1000Hz

Working Mode: Manual/Auto

Interference Filter: AC Filter and EMG Filter

CMMR: ≥100dB (with AC filter)

Input Circuit: Floating, protection circuit against defibrillator effect

Input Circuit Current: ≤0.1μA

Input Impedance: ≥50MΩ

Patient Current Leakage: <10μA

Calibrating Voltage: 1mV±2%

Skin Voltage Tolerance: ≥±500mV

Time Constant: ≥3.2s

Frequency Response: 0.05 Hz~250Hz

Noise Level: <15μVp-p

Sensitivity Threshold: ≤20μV

Signal Channel Interference: ≤0.5mm

Printer: Thermal printer

Paper: 80mmx20m, roll

Page Speed: 6.25, 12.5, 25, 50mm/s (±3%)

Sensitivity Printer: 10mm/mV (AUTO), 2.5, 5, 10, 20mm/mV

CPU: 32 bits

Safe Class: GB9706.1, Class I, Type CF

Power Supply: AC 220V (±10%), 50Hz±1Hz, Power ≤60VA

AC 85~265V, 50/60Hz

DC14.8V (2200mAh), rechargeable Li-ion battery

Dimension: 310mm×270mm×73mm

Weight: 1.45kg (with battery)
