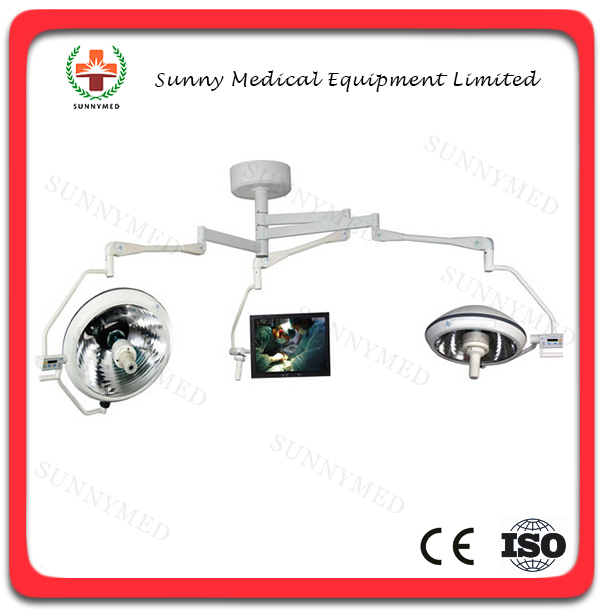

SY-I031 Professional surgical shadowless ot lamp with camera
Brand Name: Sunnymed
Model Number: SY-I031
Packaging Details: Carton or wooden case, standard export packing
Delivery Detail: In 10 days after payment received
Port: Guangzhou
MOQ：1 set
Description
Camera lamp consists of major and auxiliary vidicons, multimedia computer controlled digital monitoring system,
monitor and shadowless lamp for surgical operation. This system is mainly intended for clinical demonstration
and surgical operation.
The major vidicon is set in the center of the major lamp, keeping the scene and the light from shadowless lamp
in the same direction so as to maintain the best visual angle for surgical operation and the clearest picture.
This design makes the overall structure compact and simple.
The auxiliary vidicon on the platform takes picture of the entire scene, enlarging the vision for monitoring.
The system adopts integrated digital vidicon of high sensitivity imported from Japan and multimedia computer
controlled digital monitoring system as well as other sophisticated technologies.
The zoom offers 22 times of zooming, making it convenient to observe the entire scene or to have local enlargement.
KOCA multimedia computer controlled digital monitoring system provides:
1.Monitoring function: real-time display of three picture segregation.
2.Video function: real-time video of all pictures.
3.Back play function: select back play key to replay pictures.
special functions:
1.WINDOWS2000 PROFESSIONAL, reliable in performances.
2.Specially designed software, humanized picture operating interface for convenient operation,
completed by clicking relevant keys on the major interface.
3.Surgical operation scene or pictures of operation environment recorded by adopting MPEG.
4.Three-way video input making convenient shift between full screen and major interface.
5.Standard BMP saving mode for taking pictures of surgical operation scene or operation environment.
6.VCD video for backup, surgical operation information in the form of video (leader and reel end produced automatically)
forming a complete whole along with the video of surgical operation, making study on surgical operation convenient.
7.Stable database saving mode for storing various data, retaining more information on surgical operation.
8.Fuzzy search for search of data in the database.
9.Format, letter style and color to be determined by the user, printing can be set flexibly.
TECHNICAL SPECIFICATION:
| Camera System: | |
| Definition: | ≥480TVL |
| SNR: | ≥48db |
| Distance for camera (m): | |
| Major camera: | 0.8~2 |
| Panoramic camera: | 1~10 |
| Input power (VA): | 900 |
| Range for the movement of platform: | |
| Horizontal: | 360° |
| Vertical: | 90° |
| Mains voltage: | 220V/50Hz |
| Camera aperture: | F1.6~F3.7 |
| Focus: | F4~88mm |
| Focus magnification: | 22 |
| Video output: | 1.0Vp-p75Ω |
| Camera power supply: | 12VDC±10% |
| Operating Light: | |
| Illumination: | 80,000-160,000LX x2(at 1m distance) |
| Facula diameter: | φ100~φ280mm |
| Depth of light beam: | ≥600mm |
| Brightness adjustment: | 8-stage continuous |
| Shift of major and stand by lamps: | automatic |
| Color temperature: | 4500K±500K |
| Temperature rise: | ≤12°C |
| Temperature rise on the head of patient: | ≤2°C |
| Diameter of lamp holder: | 700mm ×2 |
| Mains voltage: | AC220V±20% 50Hz |
| Bulb voltage: | AC24V Bulb power |
| Input power: | 200VA ×2 |
| Height for installation: | 280-320cm |
