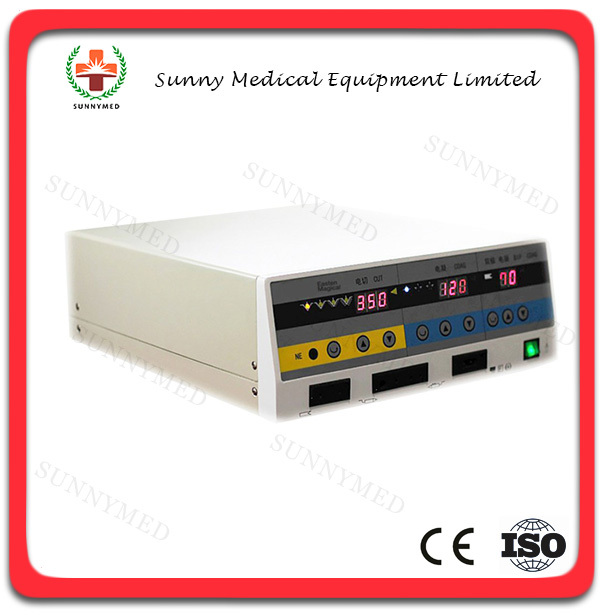

SY-I046 Hospital electrosurgical unit surgical electrosurgical diathermy machine

Brand Name: Sunnymed

Model Number: SY-I046

Packaging Details: Carton or wooden case, standard export packing

Delivery Detail: In 10 days after payment received

Port: Guangzhou

MOQ：1 set

Electrosurgical Generator, Operation room equipment

Features:

Various functions with Compact and light design

Monopolar Cut ( Pure cut , Blend 1 ,Blend 2 )

Monopolar Coag ( Standard Coag )

Bipolar Coag, fully meet different surgery requirement.

Tissue Monitoring Technology

This technology monitors the tissue density, especially for polypectomy & papillotomy, cutting is smartly divided in

cut & pause, so that coagulation occurs in each pause. The system is intelligent to change the pause interval as

tissue density changes, hence produces fine cutting with coagulation effect.

Patient Return Electrode Monitoring (PREM)

REM (Return Electrode Monitoring) function monitors the range of contact area between a patient and the neutral plate.

If the size is inappropriate, it automatically stop the high-frequency current with audible alarm to minimize the danger

of burning incidents.

Compatible with other surgical equipment

Endoscopy, Optimum Smoke Evacuation System.

Waterproof Panel Operation

Microcomputer Auto Control, Two-zone (LED ) digital display.

Application:

General Surgery, Gastroenterology , Dermatology,Vascular Surgery, Obstetrics and Gynecology.

ORL/ ENT surgery, Neurosurgery, Orthopedics & Plastic Surgery, and other open surgery.

Technical Specification :

Working Mode			Max Power	Peak Voltage
Monopolar Cut	Pure Cut		300W	1500V
	Blend 1		250W	2000V
	Blend 2		150W	2500V
Monopolar Coag	Standard Coag		120W	3500V
Bipolar Coag	Bipolar Coag		50W	620V
Electrical Requirement
Operating Voltage		220V±22V	Measuring Frequency		530KHz±2
Monopolar Rate Load		500Ω	Bipolar Rate Load		100Ω
Max Input Currency			1400VA
Environmental Conditions for Use
Condition			Range
Temperature			50°C to 40°C
Relative humidity			≤ 95% non-condensing
Pressure			700 hPa to 1060 hPa
Environmental Conditions for Transport and Storage
Condition			Range
Temperature			-40°C to 55°C
Relative humidity			≤ 93% non-condensing
Pressure			500 hPa to 1060 hPa
Dimension (L×W×H)			350mm×320 mm×100mm
Weight			10kg

Standard Accessories :

Electrosurgical Unit 1	ESU Pencil 2	Disposable ESU Plate 5	Bipolar forceps 1
Reusable patient plate cable 1	Reusable Bipolar cable 1	Power cable 1	Footswitch 1
