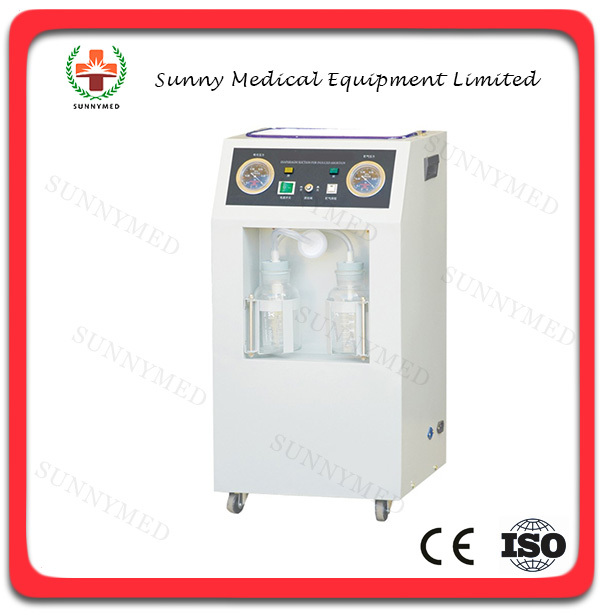

Diaphragm type electrical suction unit adopts oil-free diaphragm pump. It is fit for
induced abortion for women in early-stage pregnancy in hospitals, and may also be used
in suctioning in other surgical operations. The machine produces two-stage negative pressure.
Features:
The abortion suction apparatus is equipped with a imported membrane pump available with long service life.
The abortion suction apparatus adopts dual-pole negative pressure control, free of trauma.
This abortion suction apparatus has low noise and is maintenance-free.
This abortion suction apparatus is equipped with an overflow protection unit to prevent liquid from getting into pump body.
An apparatus tray is provided at the top of the machine.
TECHNICAL SPECIFICATION:
| Power voltage: | AC220V±10% 50Hz |
| Negative pressure: | ≥0.09Mpa (680mmHg) |
| Range of negative pressure: | 0.013MPa~0.09Mpa(680mmHg) |
| Pumping efficiency : | stage 1≥35L/min ; stage 2≥15L/min |
| Liquid bottle: | 500ml×2 |
| Gas bottle: | 2500ml×2 |
| Noise: | ≤45dB |
| Input power: | 400VA |
| Pump structure: | Diaphragm type |
| Working type: | intermittent loading,continuous operation |
PRODUCT ADVANTAGE:
| 1.imported diaphragm pump |
| 2.dual-pole negative pressure control |
| 3.low noise |
| 4.maintenance-free |
| 5.with an overflow protection |
| 6.instrument tray at the top |
