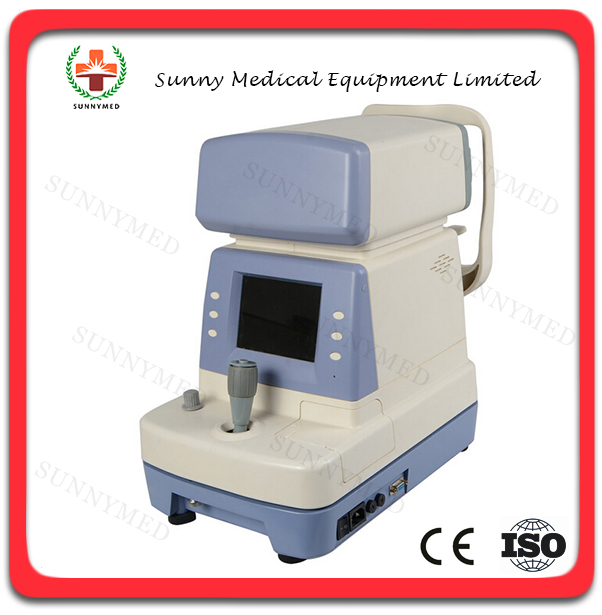

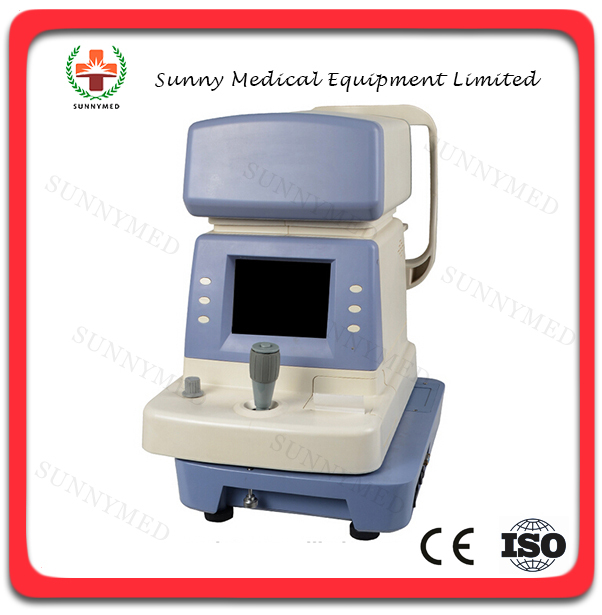

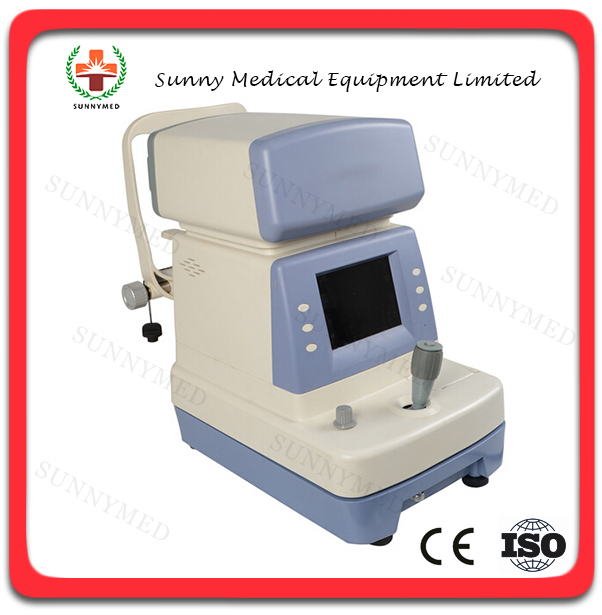

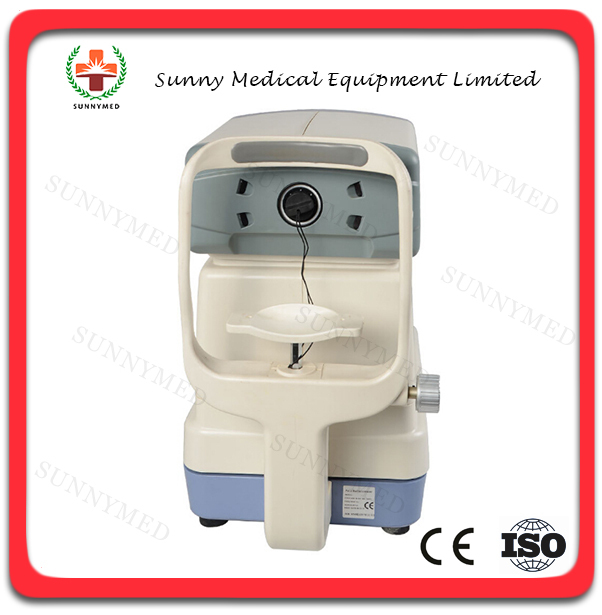

SY-V016 Ophthalmic optical examination digital auto refractometer
Brand Name: Sunnymed
Model Number: SY-V016
Packaging Details: Carton or wooden case, standard export packing
Delivery Detail: In 10 days after payment received
Port: Guangzhou
Description
Specification:
| Vetex Distance(vd) 0.0,12.0,13.75mm |
| Sphere Power(SPH) -20.00~+20.00D(in case of VD=12mm) |
| Cylinder Power(CYL) 0.00~±10.00D(0.12/0.25D Unit) |
| Axis(AX) 1~1800 (10 Unit) |
| Cylinder Form -,+,MIX |
| Pupil Distance(PD) 10~80mm |
| Minimum Pipul Diameter 2.00mm |
| Radius of Curvature 5.0~10.2mm(Increments:0.01mm) |
| Corneal Power 33.00~67.50D(When corner equivalent refractive |
| index is 1.337;0.05/0.12/0.25D unit) |
| (Increments selectable from 0.12,0.25D) |
| Corneal astingmatism 0.0~-15.00D |
| (Increments selectable from 0.12,0.25D) |
| Axis 1~180°(Increments:1°) |
| Corneal Diameter 2.0~14.0mm(Increments:0.1mm) |
| Memory of Data 10 measure value for each right and left eye |
| Internal printer Uses thermal line printer |
| Monitor 5.7-inch color TFT LCD monitor |
| Operation Temperature: +10 to +35℃ |
| Humidity: 30 to 75%RH |
| Atmospheric pressure:800~1060 hpa |
| Storage Temperature:-10 to +55℃ |
| Humidity:30 to 75%RH |
| Atmospheric pressure:700~1060 hpa |
| Transportation Temperature:-20 to +70℃ |
| Atmospheric pressure:500~1060 hpa |
| Power supply AC100~240V,50/60HZ |
| Power consumption Approximately 100VA |
| Size 480(L)*282(W)*445(H)mm |
| Weight Approximately 17kg |
