Description

Features

· WBC 5-part differentiation, 23 reportable parameters, 3 histograms and 3

scattergrams
· Whole blood mode, Capillary whole blood mode and Prediluted mode
· Tri-angle Laser scatter + Chemical dye + Flow cytometry technology
· Dedicated optical counting channel for Basophil measurement

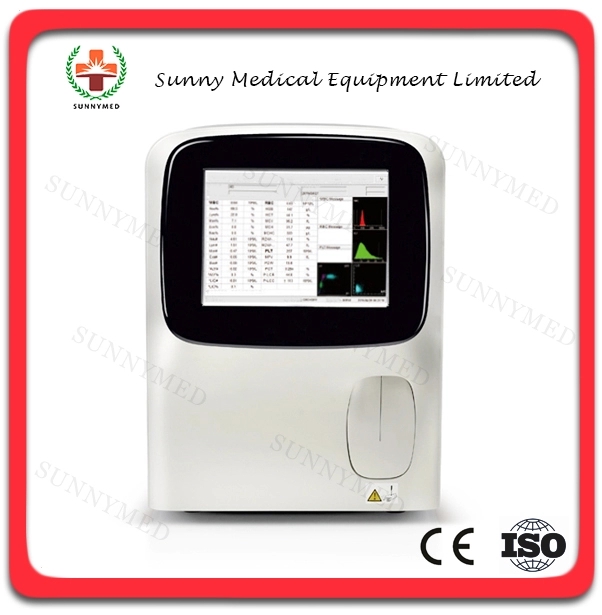

· 10.4-inch large TFT touch screen with user-friendly software
· Powerful capability of flagging abnormal cells· Large storage capacity: up to

50,000 samples
· Throughput: 60 samples per hour
· Sample volume is only 15μL which is ideal for pediatrics

Tri-angle laser scatter + focused flow + chemical dye, creating the possibility for a better

5-part WBC differentiation even on samples with highEosinophil.

Parameters :

23 Reportable Parameters CBC:
Whole Blood Mode: WBC, Lym#, Neu#, Mon#, Eos#, Bas#, Lym%,
Neu%, Mon%, Eos%, Bas%, RBC, HGB, HCT, MCV, MCH, MCHC,
RDW-CV, RDW-SD, PLT, MPV, PDW, PCT.
4 Research Parameters: ALY#, LIC#, ALY%, LIC%
3 Histograms: WBC, RBC, PLT
3 Scattergrams for WBC Differential and 1 for Basophil measurement

Sample Volume  :

Whole blood mode 15μL

Capillary mode 15μL

Pre-diluted mode 20μL

Power requirement:

A.C100V~240V (50/60Hz), ≤250VA

Dimension:

360mm(L) x 470mm(W) x 430mm(H)

Weight:28kg

Multi- Language :

Chinese, English available
Spanish, Portuguese,Russia,French under development
