Description

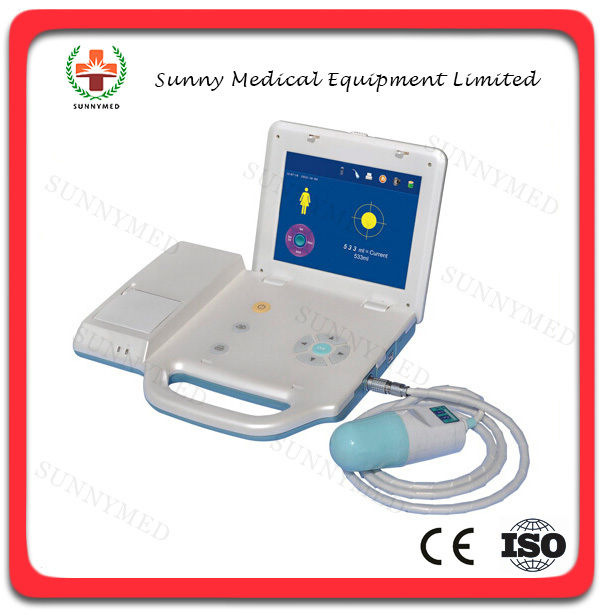

Bladder scanner is a portable device with advance 3-D Ultrasound technology and dedicated for noninvasive

measurement of bladder filled volume. It can speedily complete the detection of bladder area through pre-scan

of probe connected with the device and the display used color TFT LCD. Its measured result can be printout with

thermal printer and also can be stored in the built-in flash-disk to send to the computer through USB interface.

By this provides clinical data for judging the opportunity to apply catheterization, which reduces the frequency

of catheterization and risk of UTI. It is also intended for evaluation of the residual volume after urination, evaluating

treatment effect of a medicine or treating plan. The power for the device comes from built-in battery.

Feature:

Light weight, easy to carry, accurate,safety,operating easily

Portable, design and battery-driven, it offer great convenience to use
Save Patient info and image up to 100 cases

Display real-time bladder image and position in-phase

Automatically measurement and display its result.
With USB interface can send the report to PC

Limitation of unnecessary catheterization
Reduction rates of urinary tract infection
Help in managing incontinence
Enable wide diagnose and anatomic measurement of bladder

Most common application area:
urinary incontinence,
urinary retention,
urinary tract infections

Obstetrics, Gynecology, Rehabilitation, Pediatrics,

Note:
It cannot be used on wounded skin.
For patients with hypertrophy of the prostate, space occupying disease or scars, there is a risk of producing

a result exceeding the given accuracy range.

Technical Specification:

1)  Transducer: 2.6MHz;

2)  Probe: mechanical sector scanning;

3)  Detect depth: ≥140 mm;

4)  Host power supply: Internal battery

5) Battery: Voltage 7.4V(standard value), capacity: ≥4200mAh

     Charge the batteries: charge for 3.5-4 hours full;

     Full batteries: sustainable use for 4 hours(In the ready state);

6)  Charger : Input voltage for the device: AC 220V±10%,50±1HZ;

    Output voltage for adapter:9.0V;Output voltage for charger: 8.5V;

7)  Output interface: USB for data store and software upgrade

8)  Display mode: measured result, present location and B mode image

9)  Measured result: automatically measurement and display its result.

10)  Case management: Store, browse and export

11)  Max. Measurement: 999ml;

12)  Measurement accuracy: 0ml≤V≤999ml, ±15%;

13)  Storage capacity: 100 cases

14 ) Device dimension: 310x260x50mm;

15)  Net weight: about  2.1 KG.
